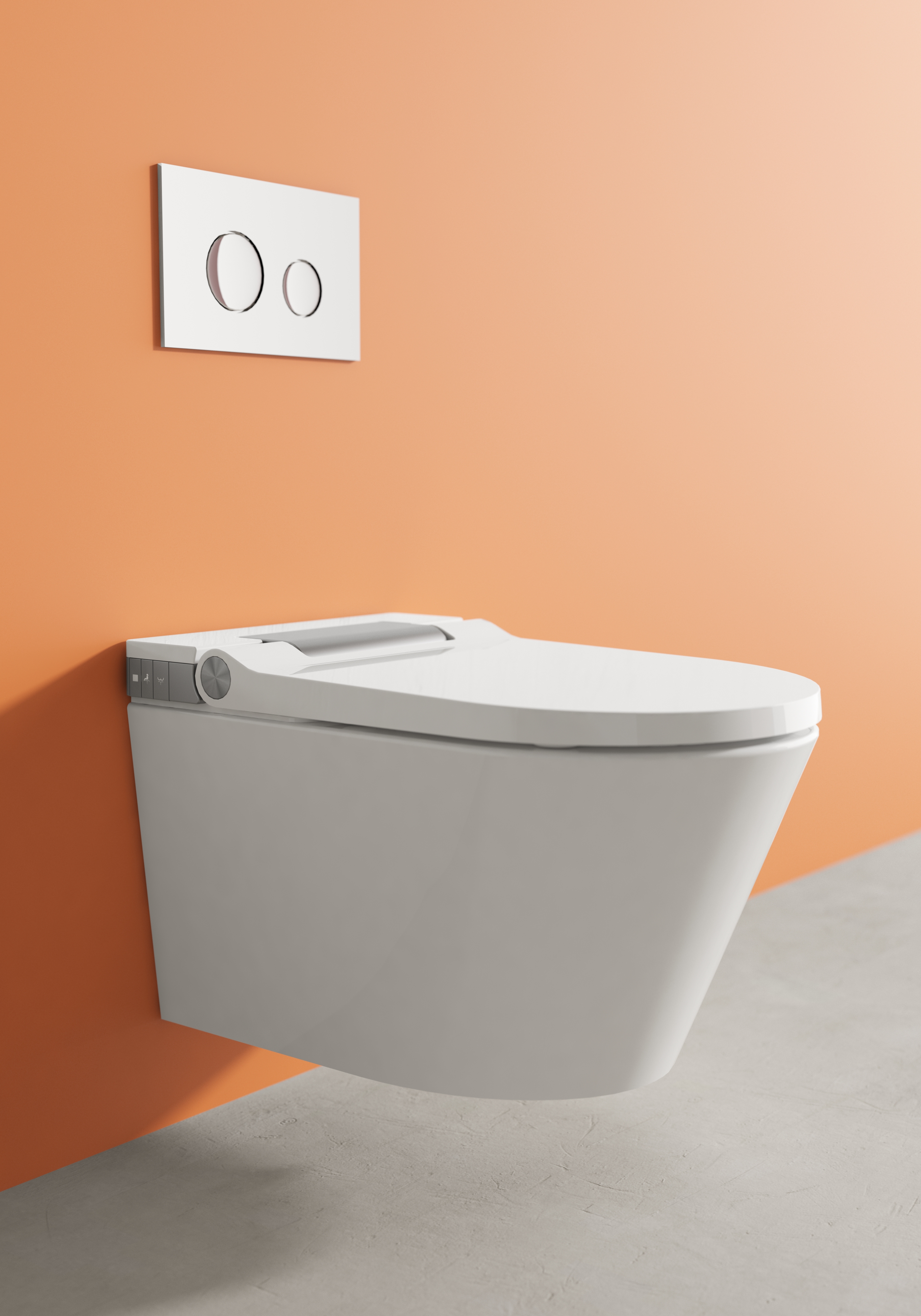

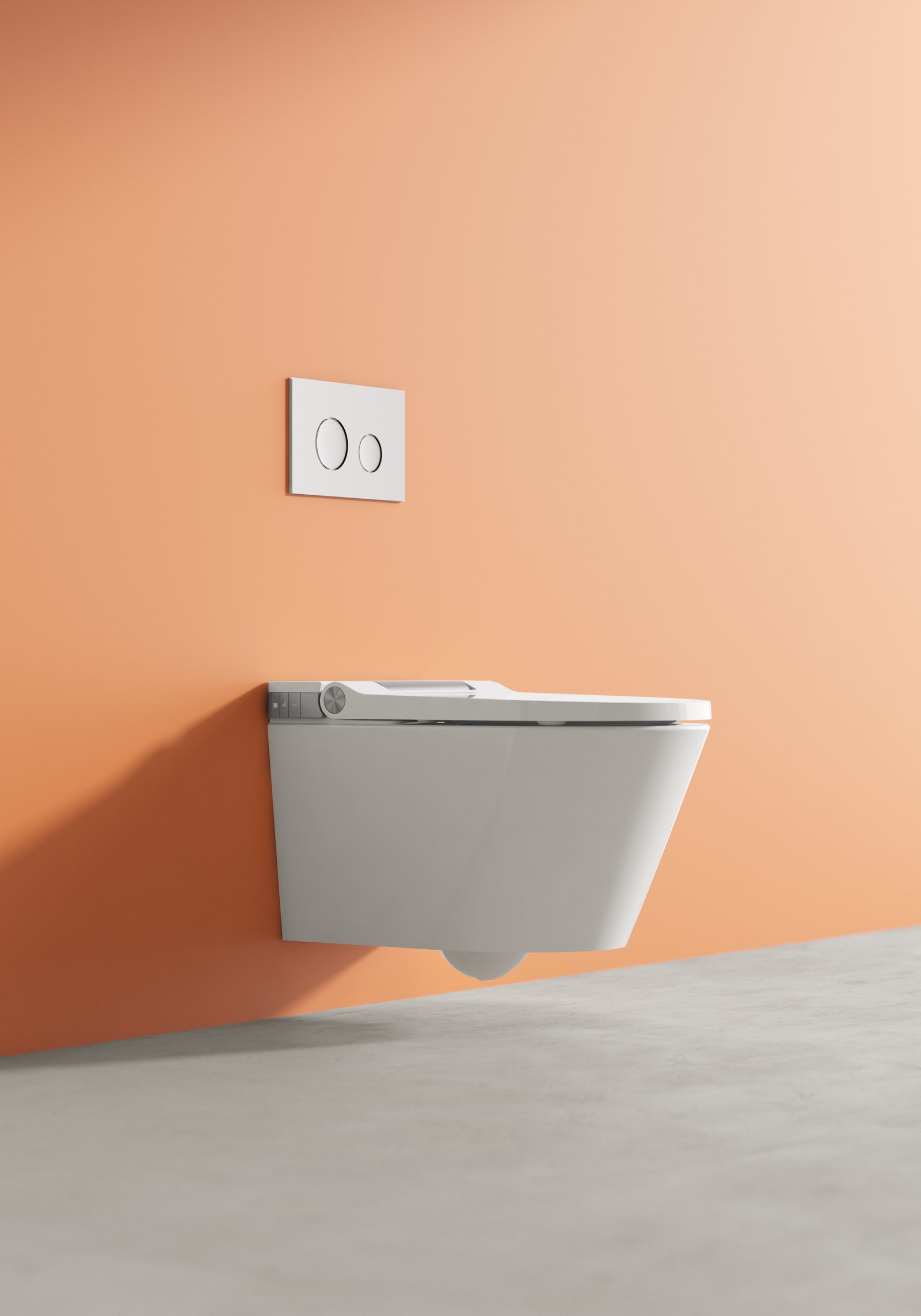

ETW2401 gallery
What makes the 2400 series different
UF heated seat, auto open‑close UF lid, and quick‑release — all three functions combined in one product. No other manufacturer has solved this.

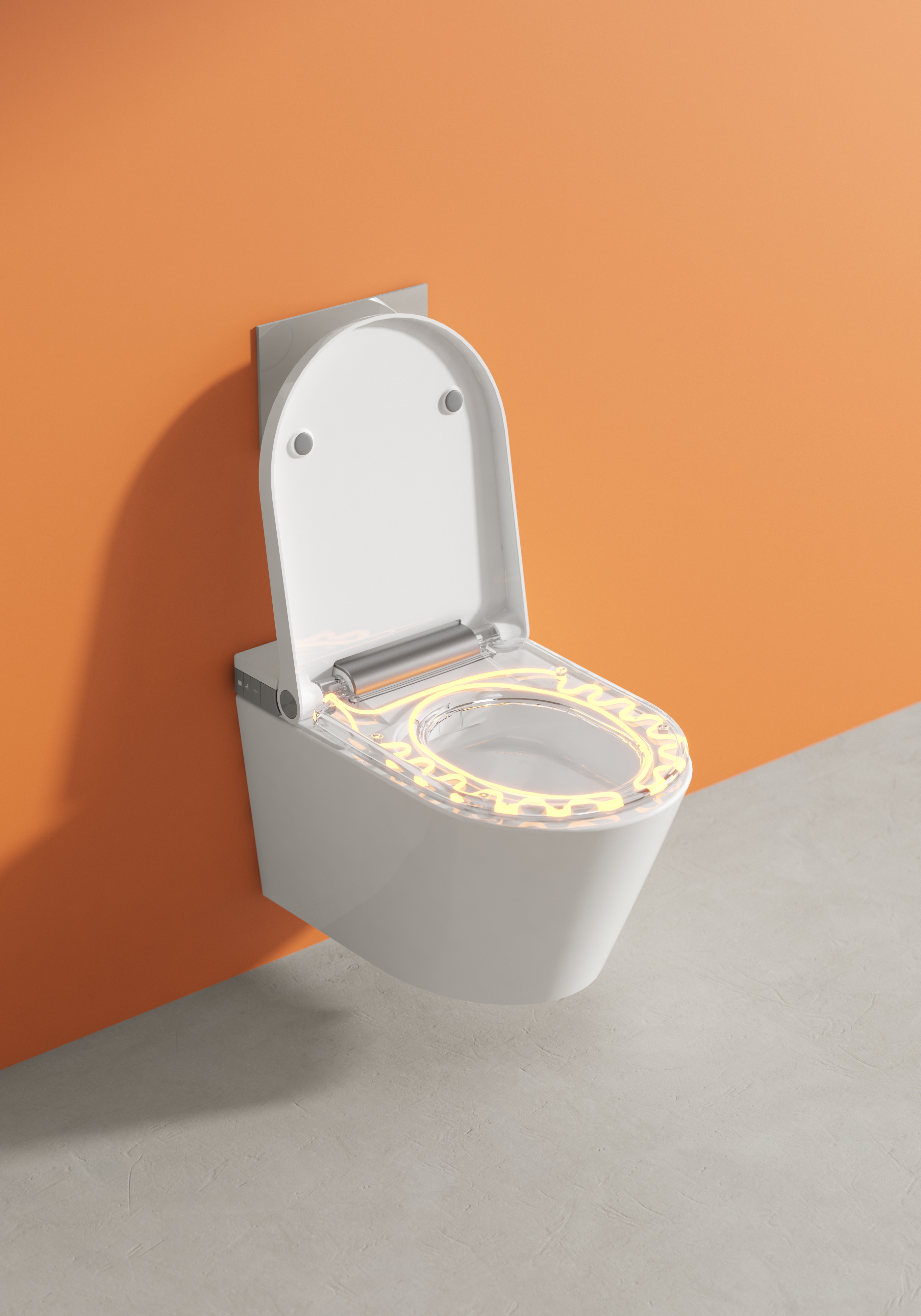

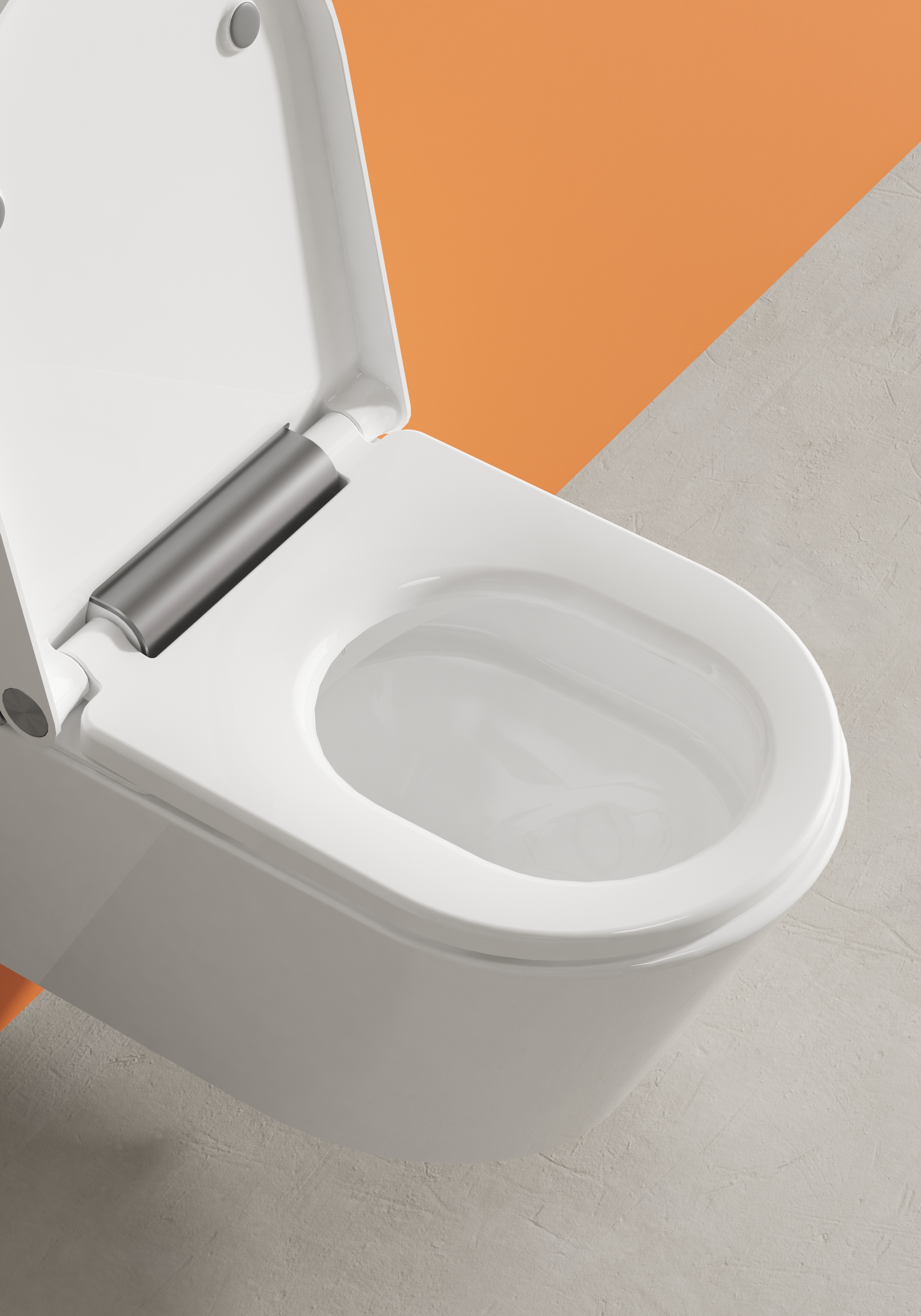

UF Heated Seat
A urea‑formaldehyde seat with an integrated heating element — harder, more hygienic and more durable than standard plastic seats. Instant warmth without long pre‑heating.

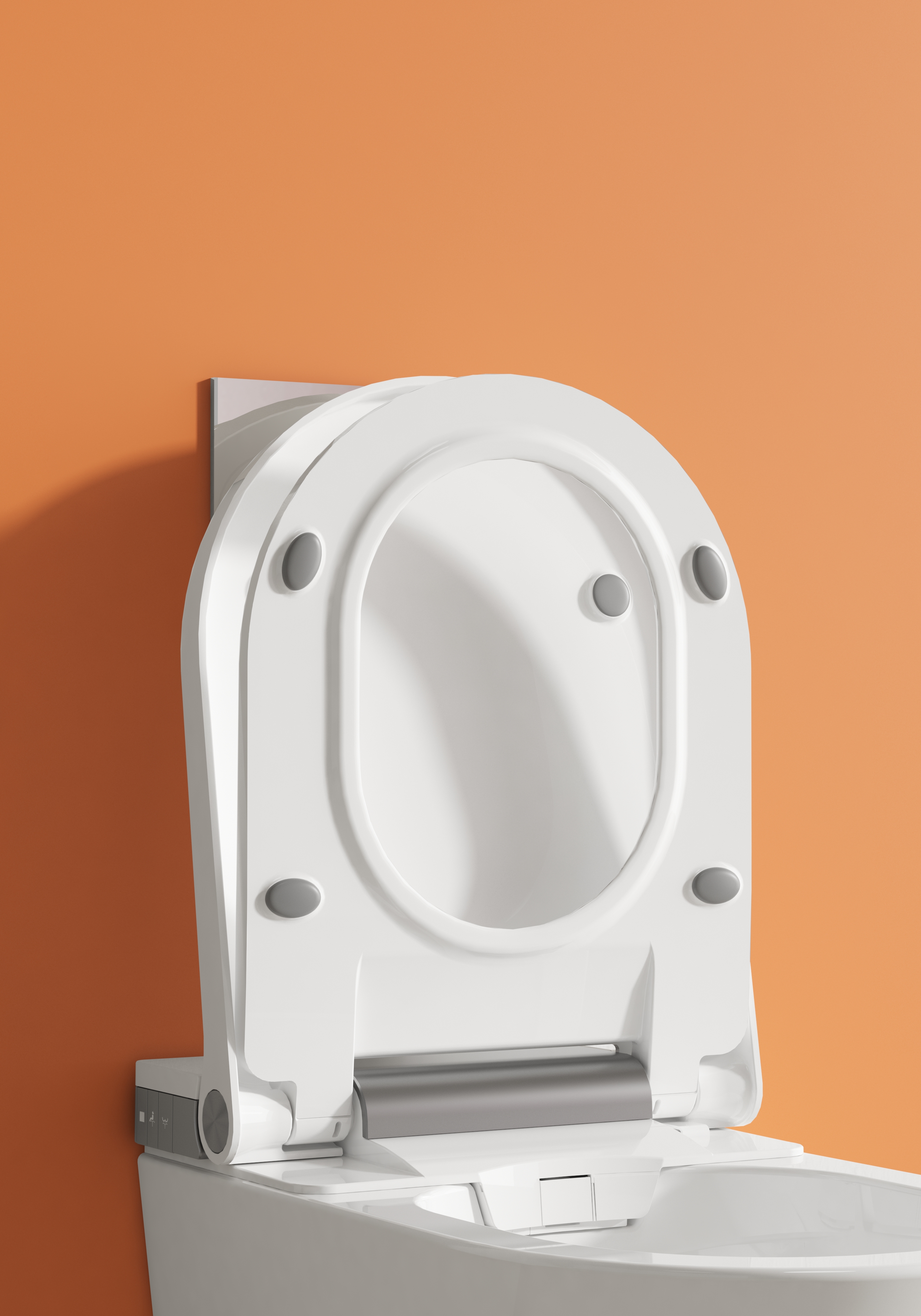

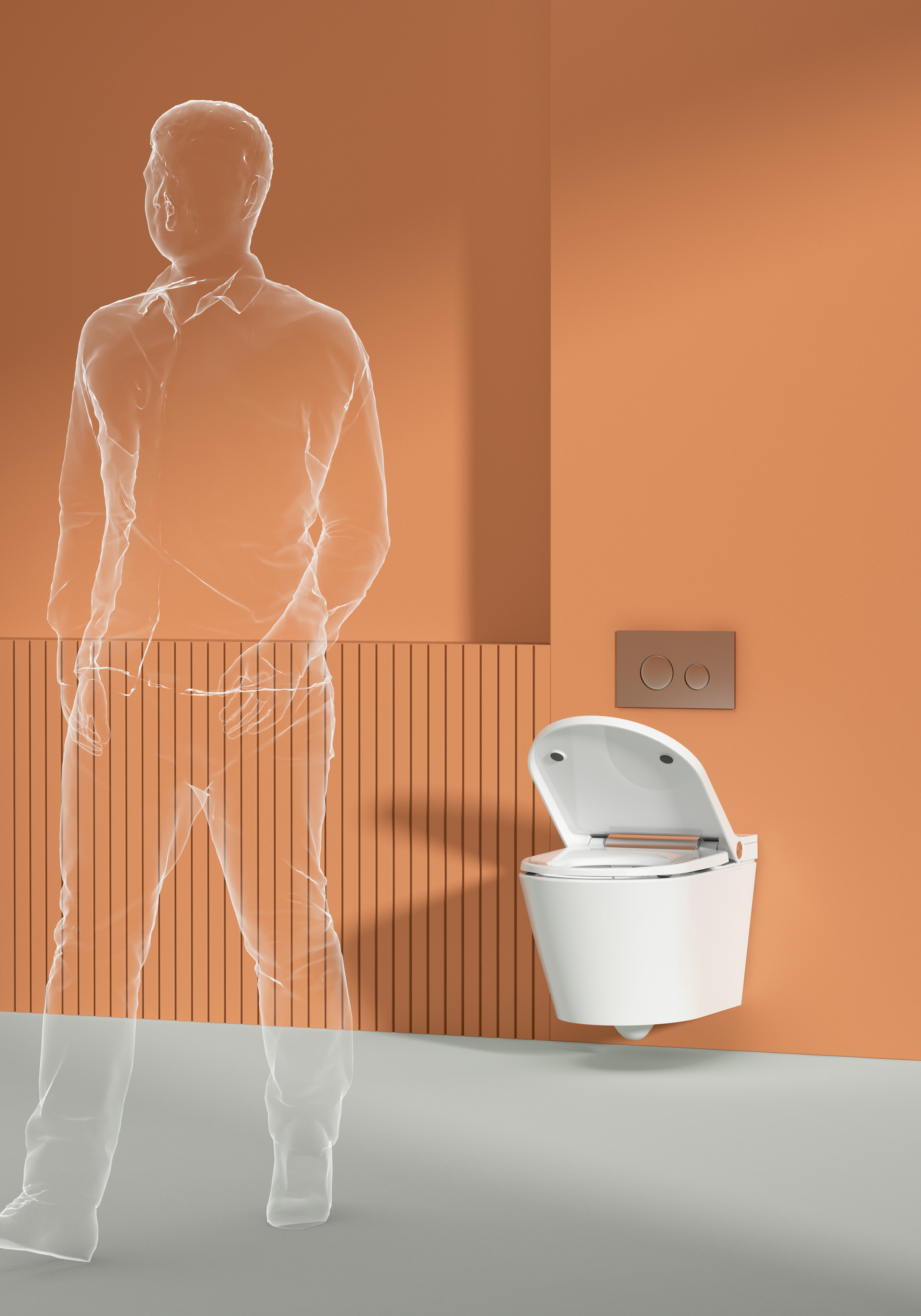

Auto Open & Close Lid
A proximity sensor detects your approach and opens the lid automatically. After use the lid closes on its own — hands‑free, hygienic and premium.

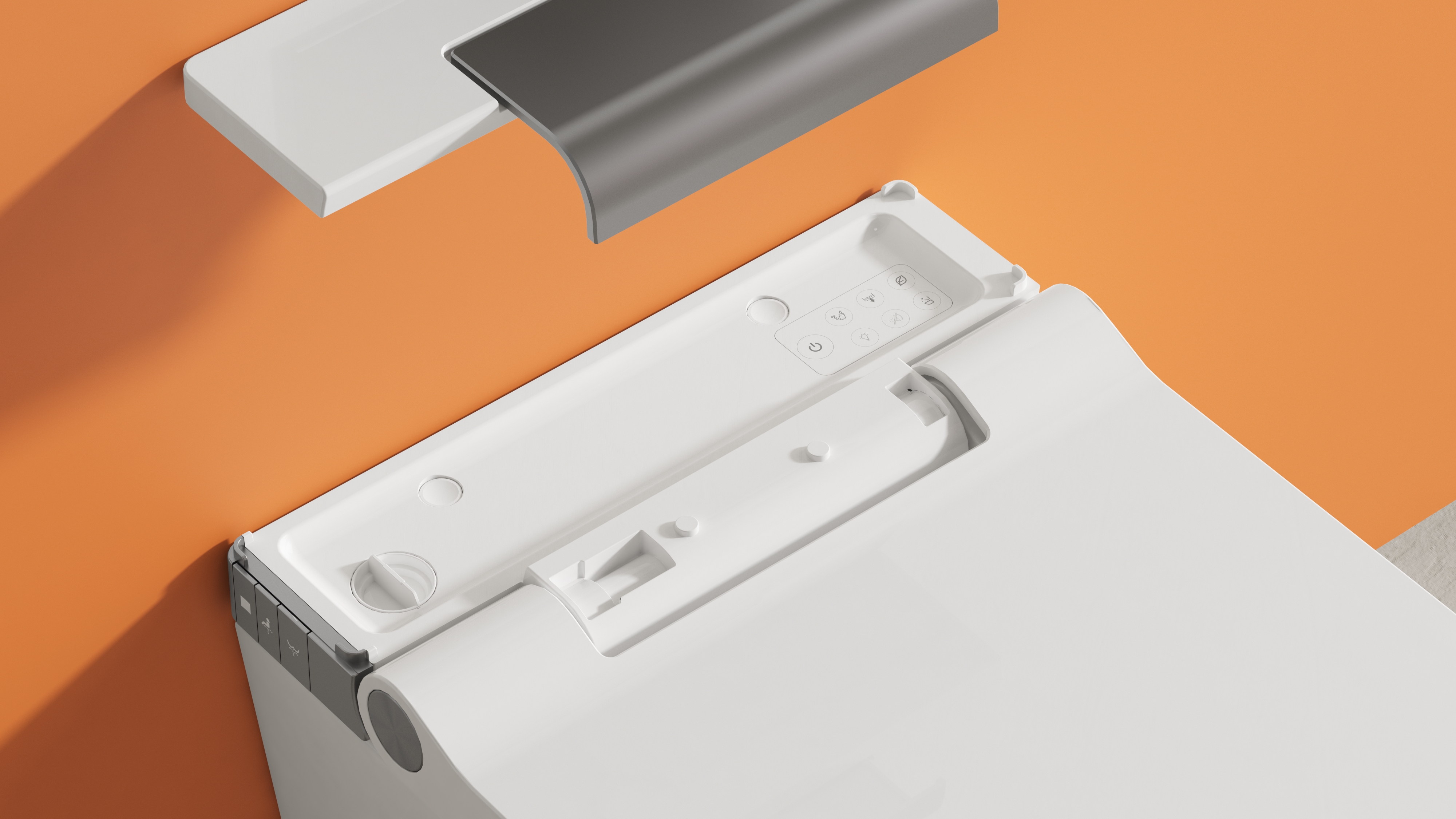

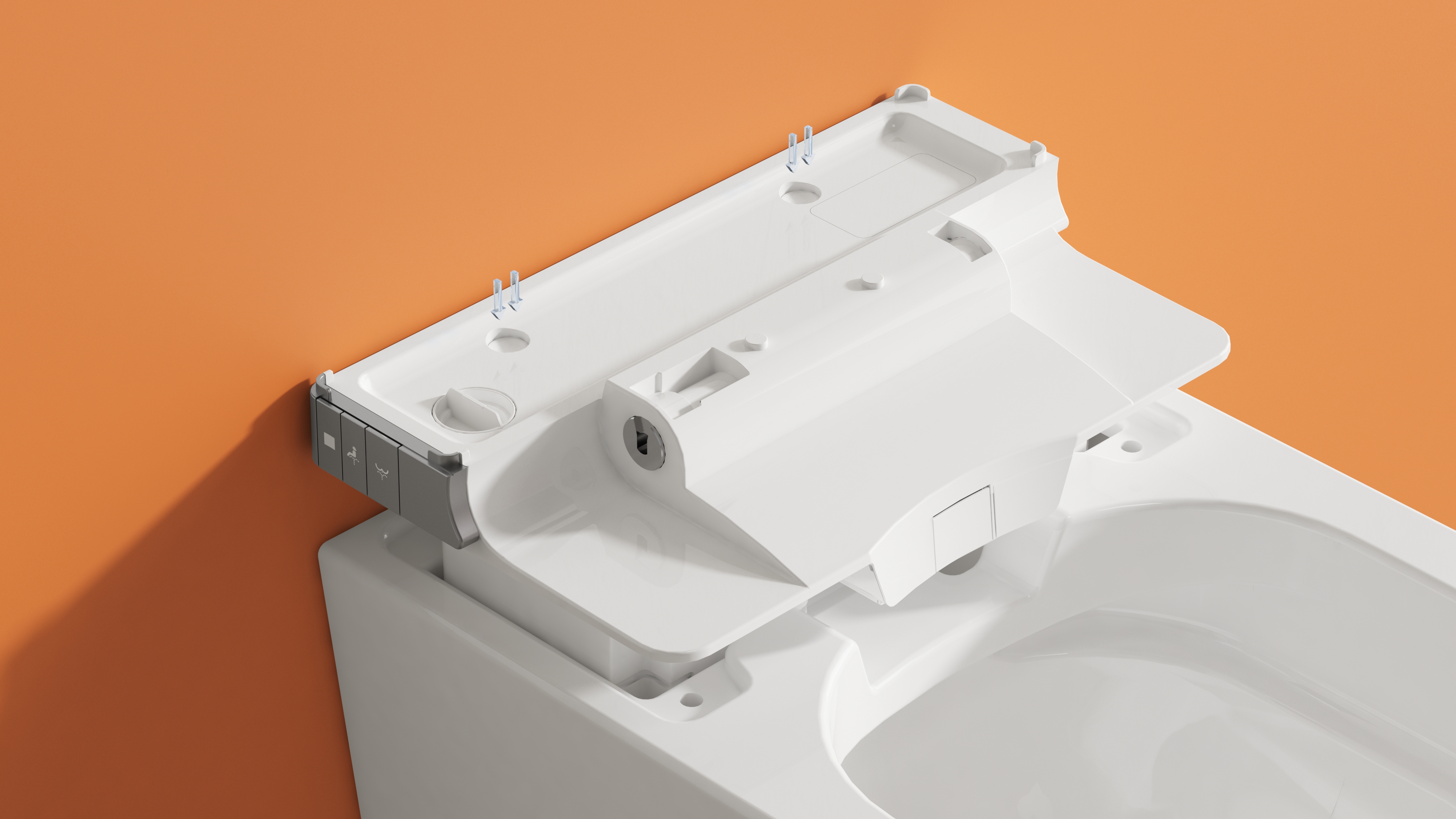

Quick‑Release Lid & Seat
Despite the heated seat and motorised lid, the entire assembly releases with one button for cleaning — a structural challenge no competitor has solved in a wall‑hung product.
Hygiene & Cleaning

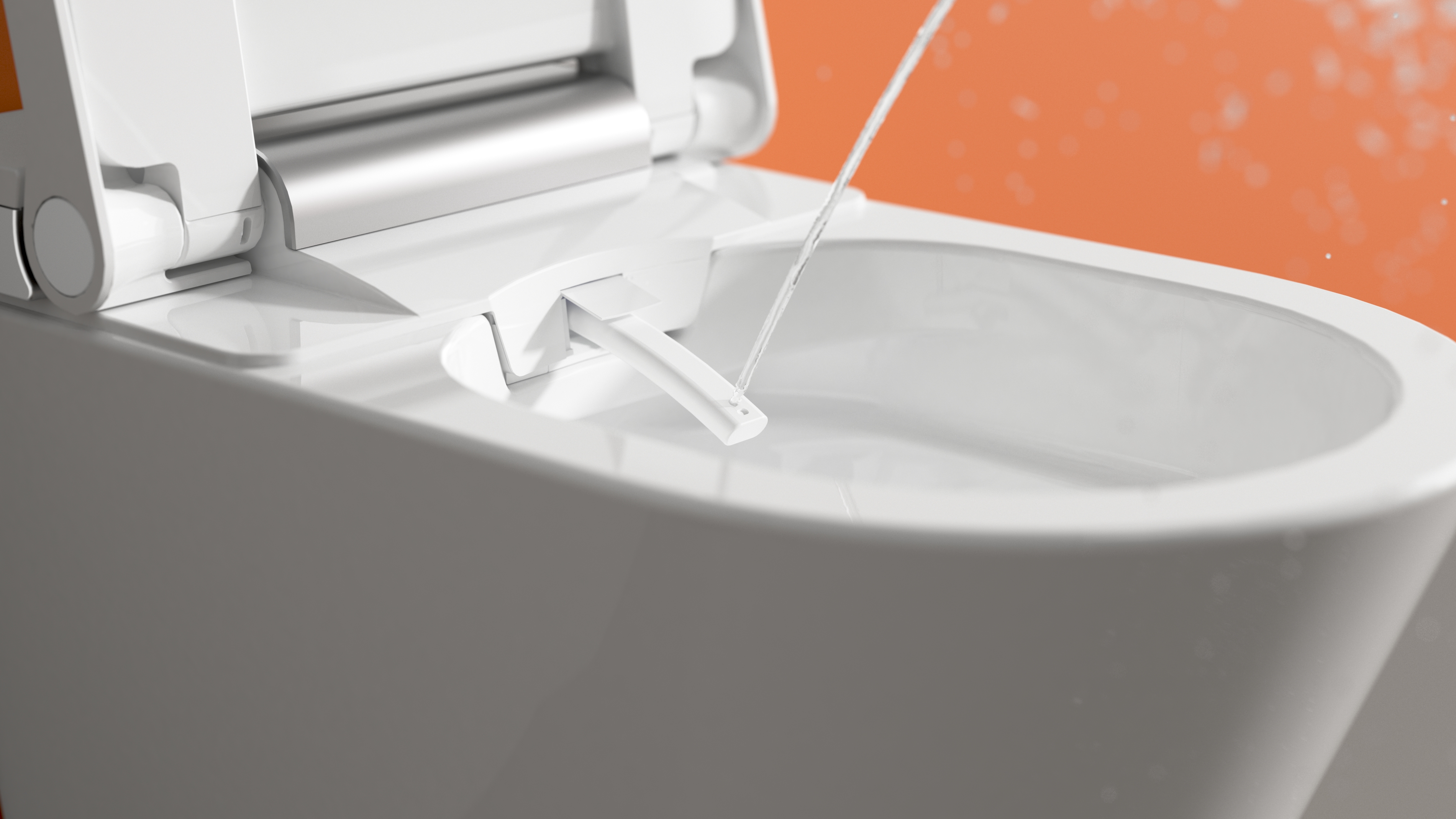

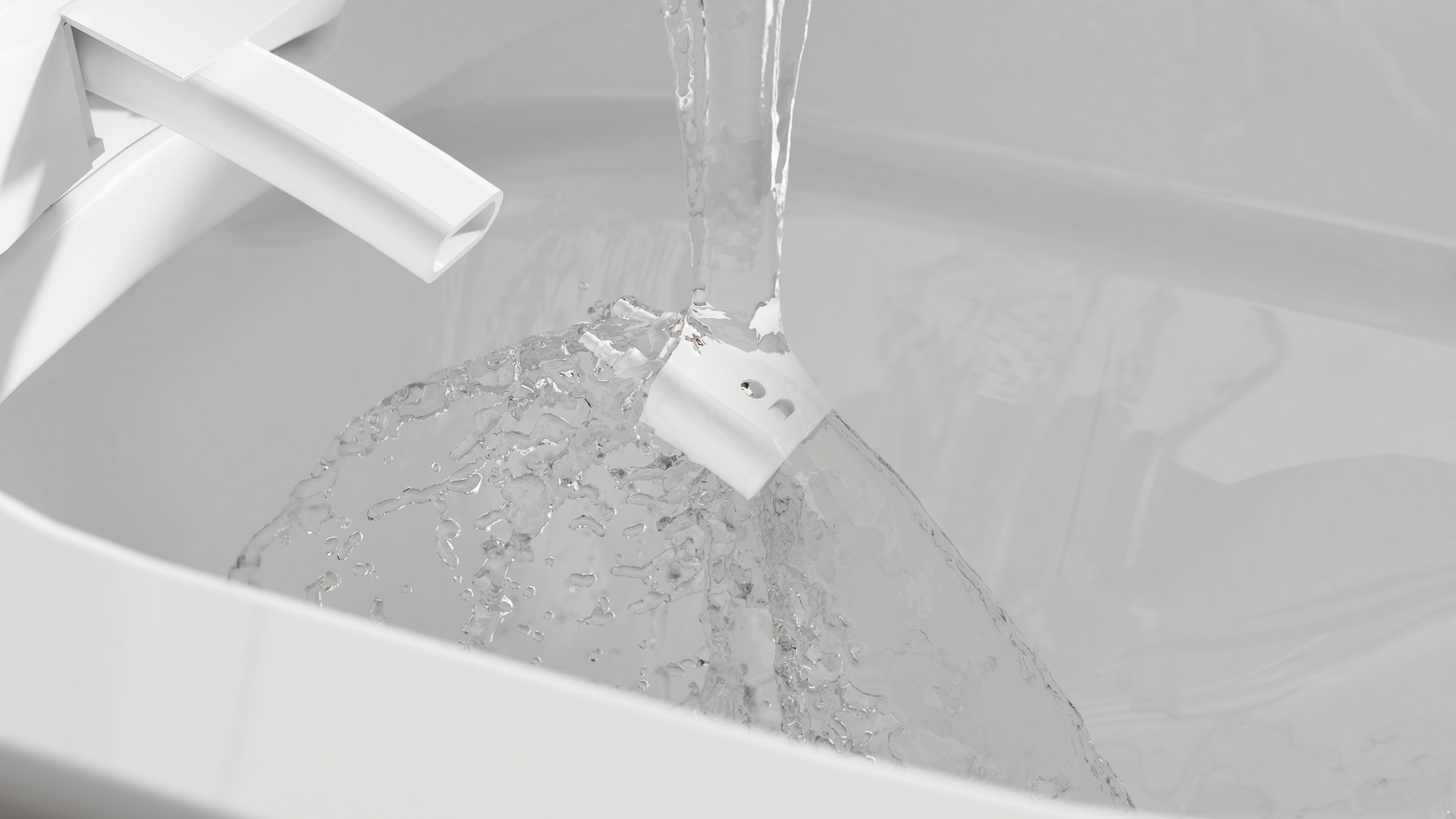

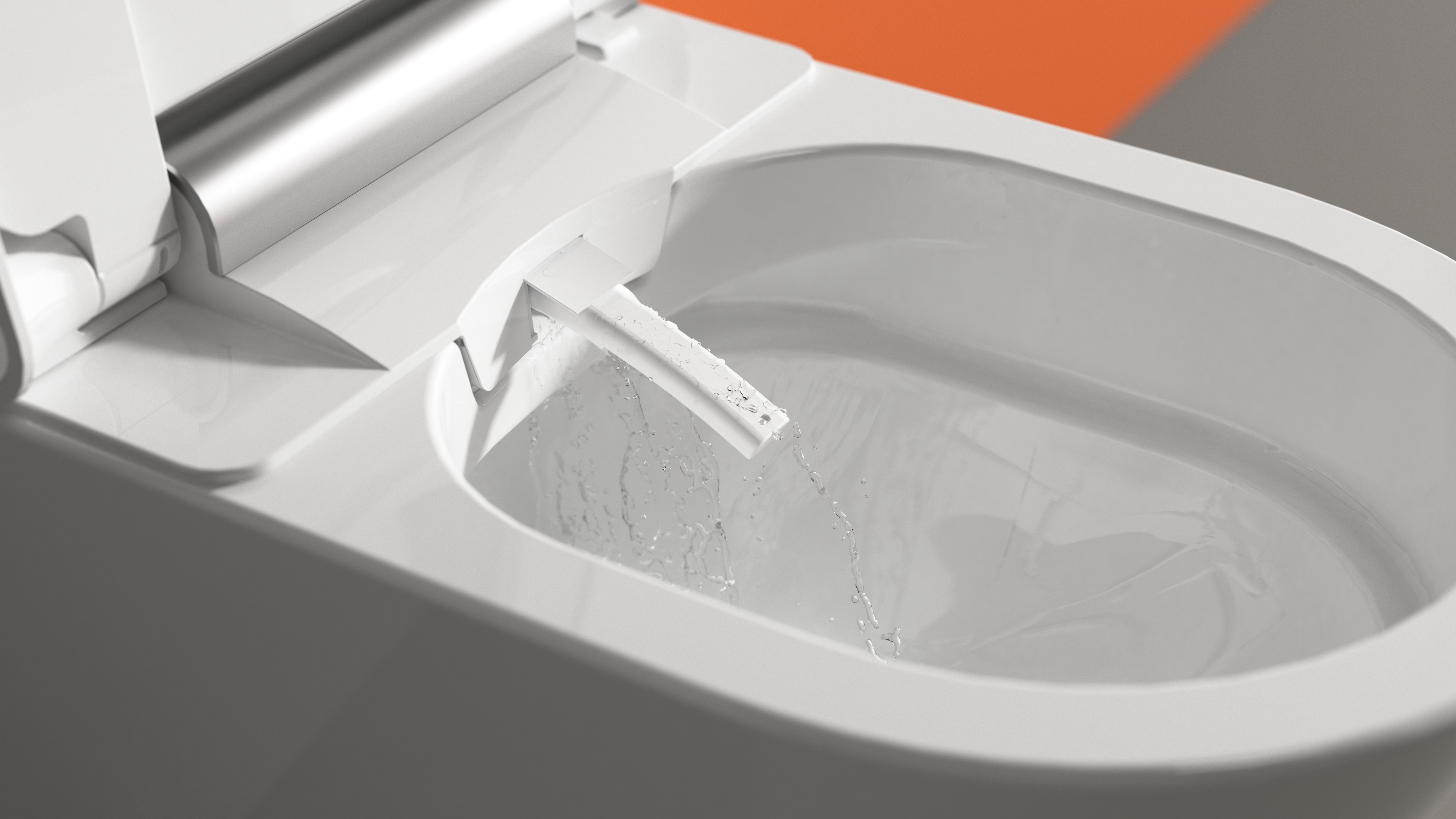

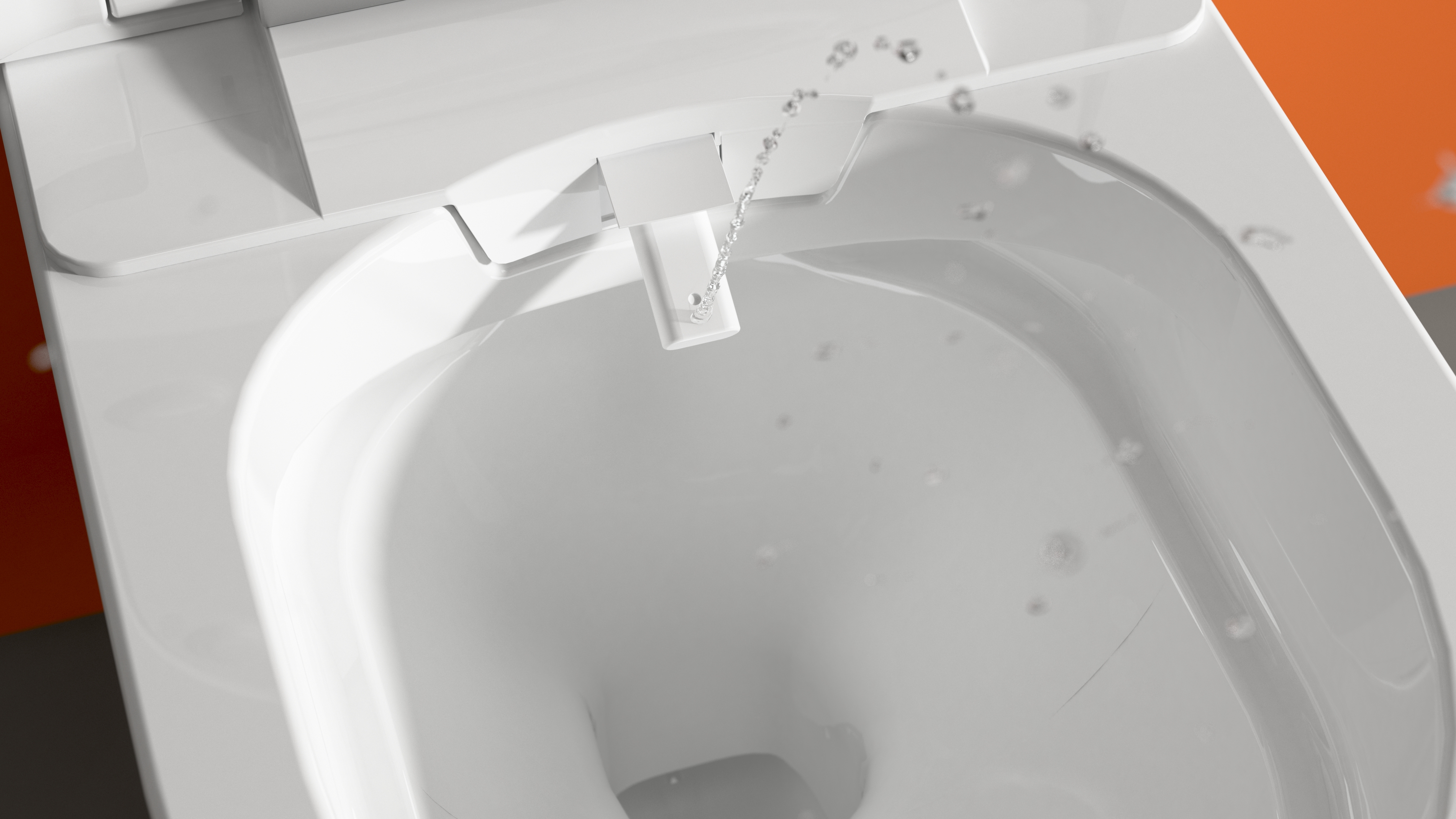

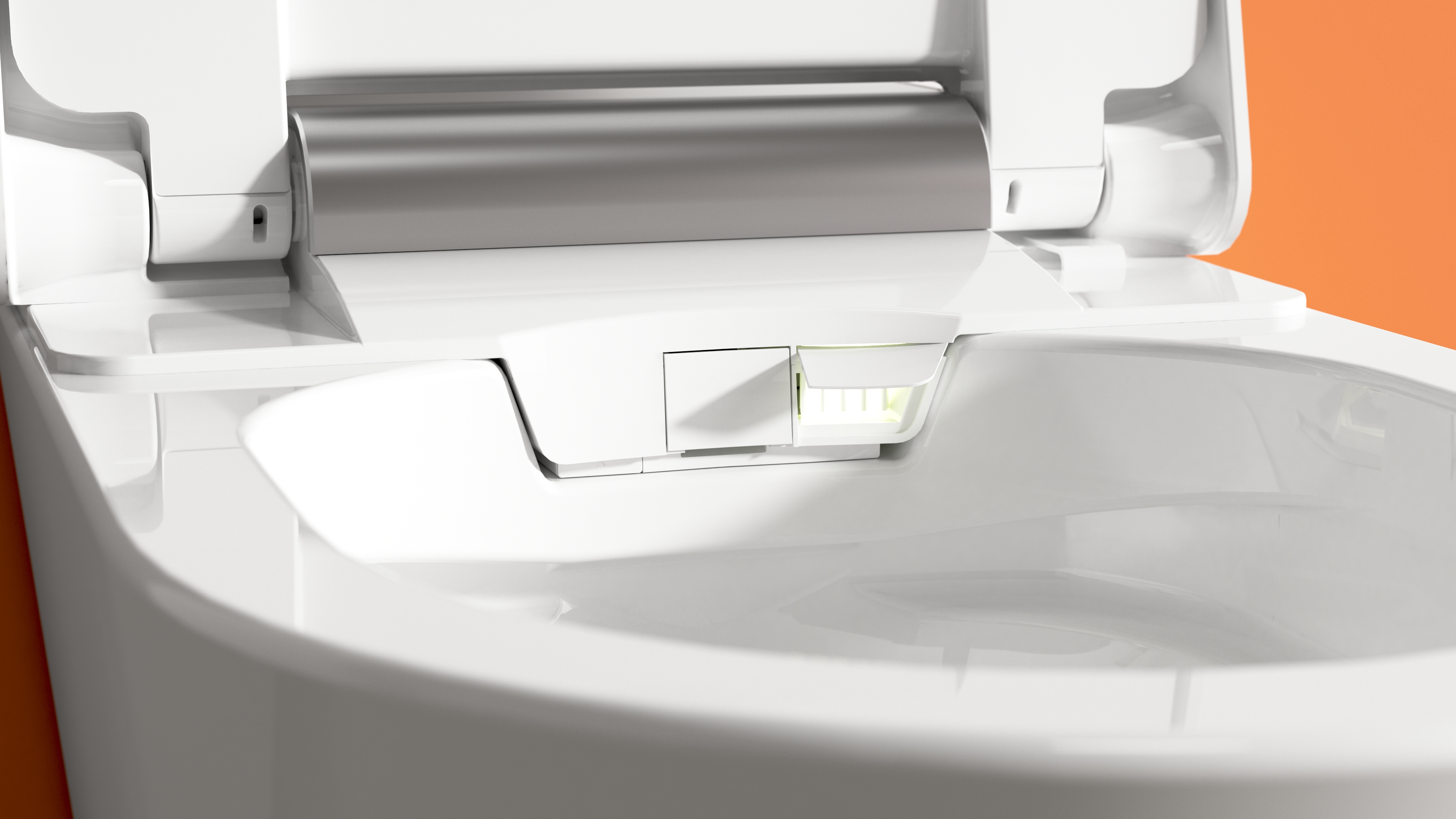

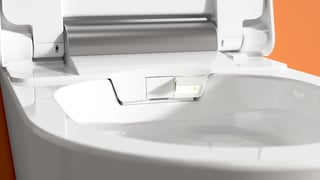

Rear & Front Wash
Separate nozzles for posterior and feminine wash. Adjustable water temperature, pressure and position — stored per user.
Oscillating & Pulsating Wash
The spray wand moves back and forth and can pulse for a deeper clean. Adjustable from the remote or side‑touch panel.

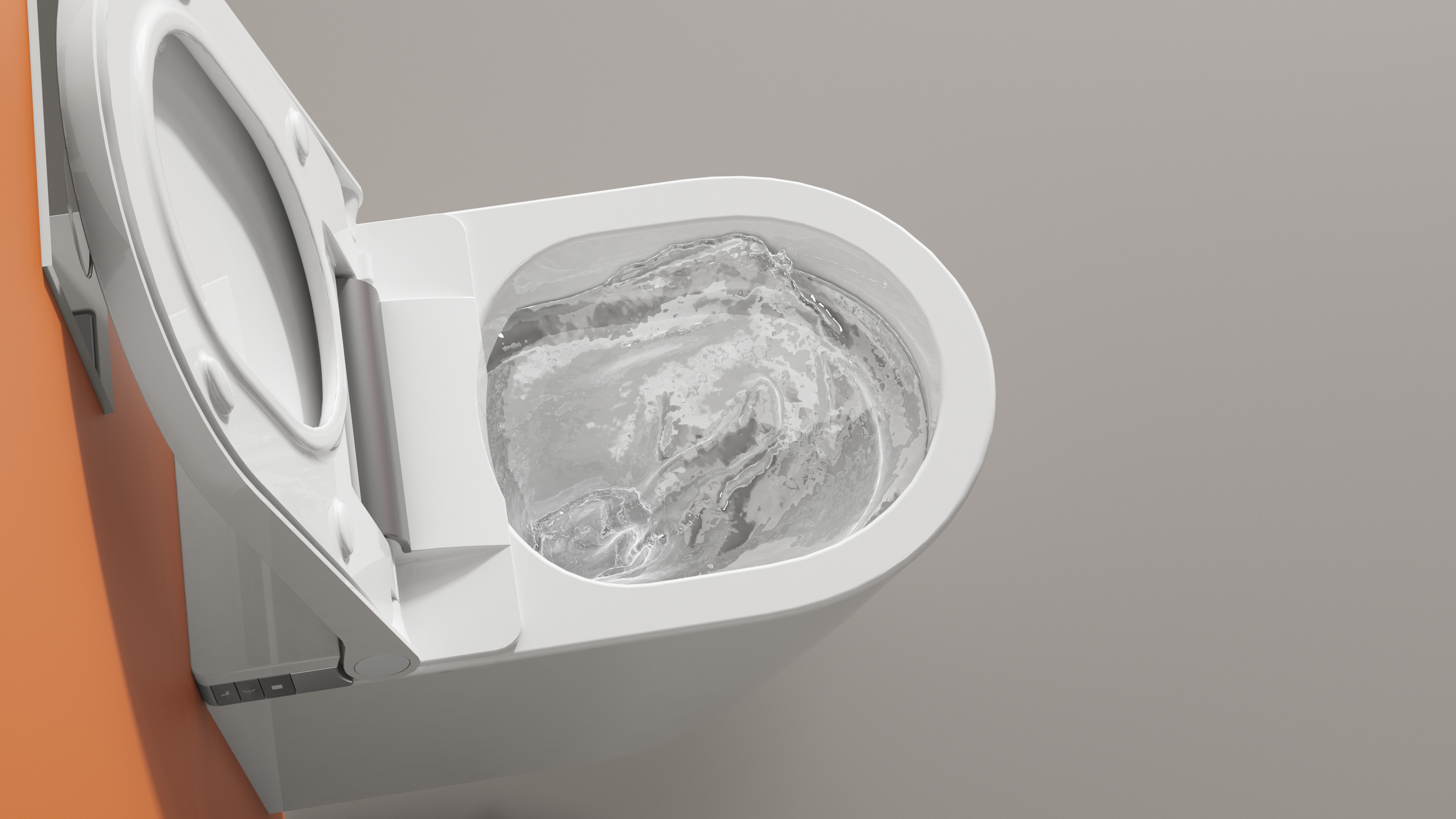

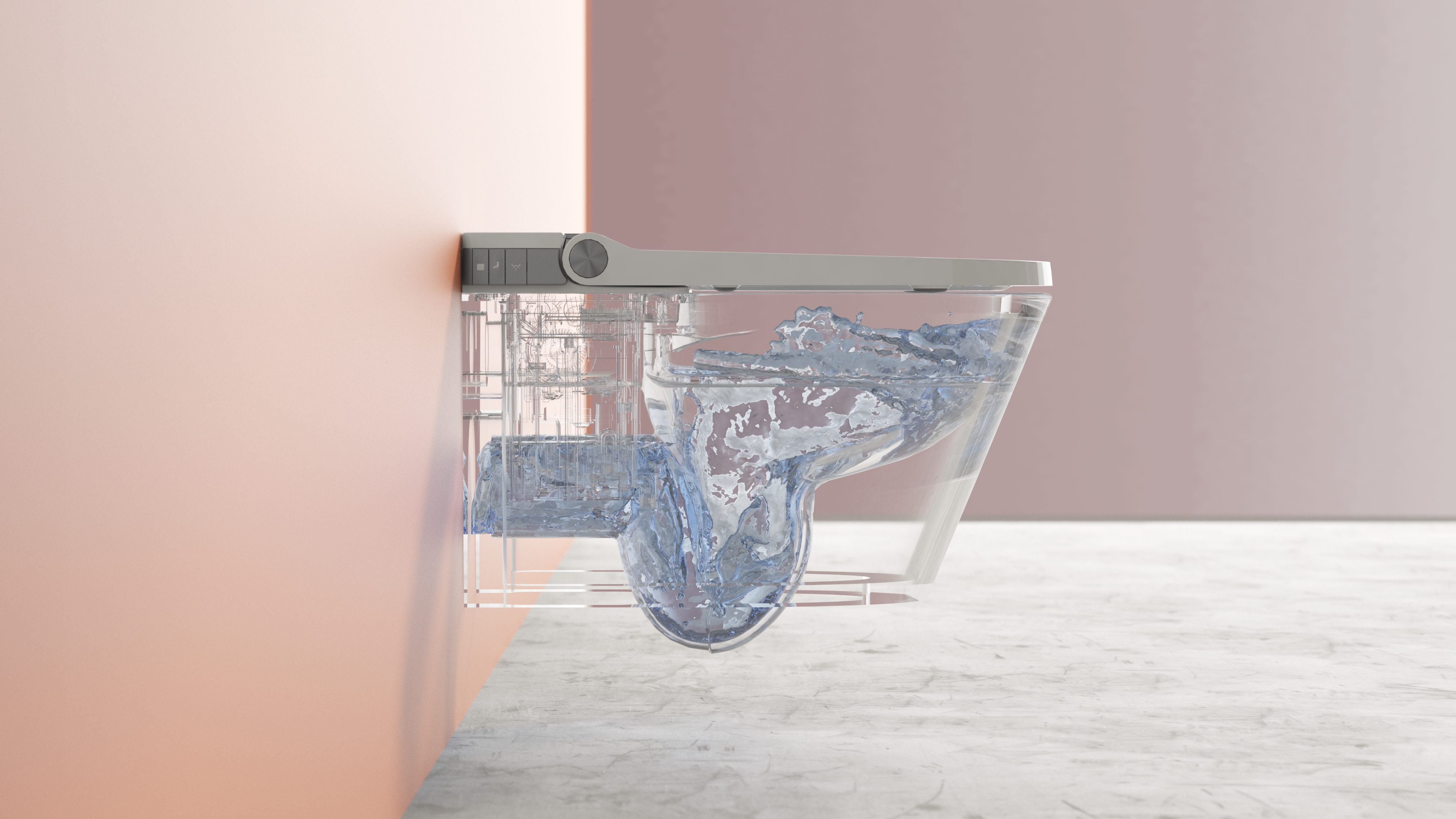

Rimless Vertex Flush
A rimless bowl with a vertex water path for powerful, quiet flushing. No rim means no hidden dirt — easy to wipe clean.

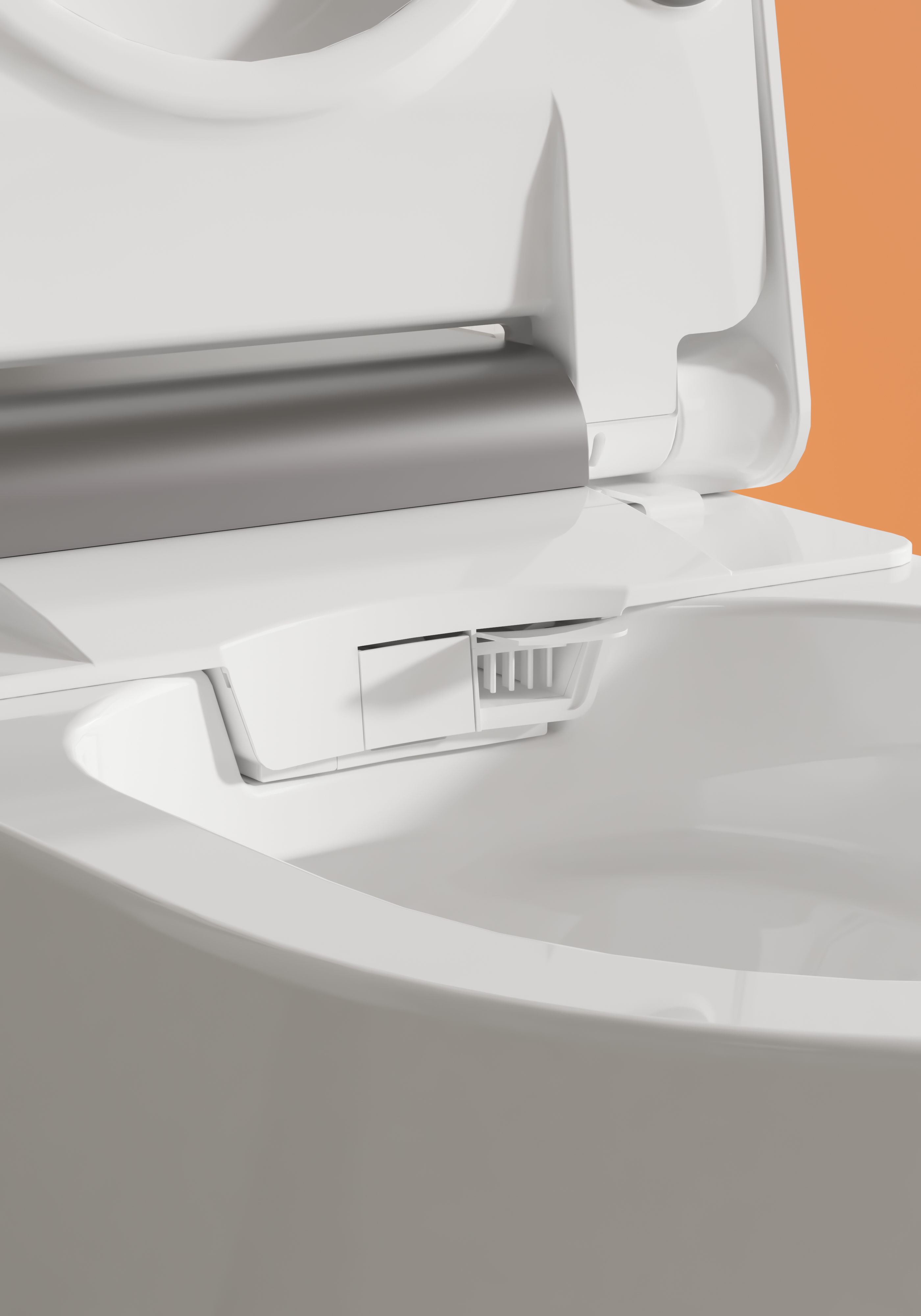

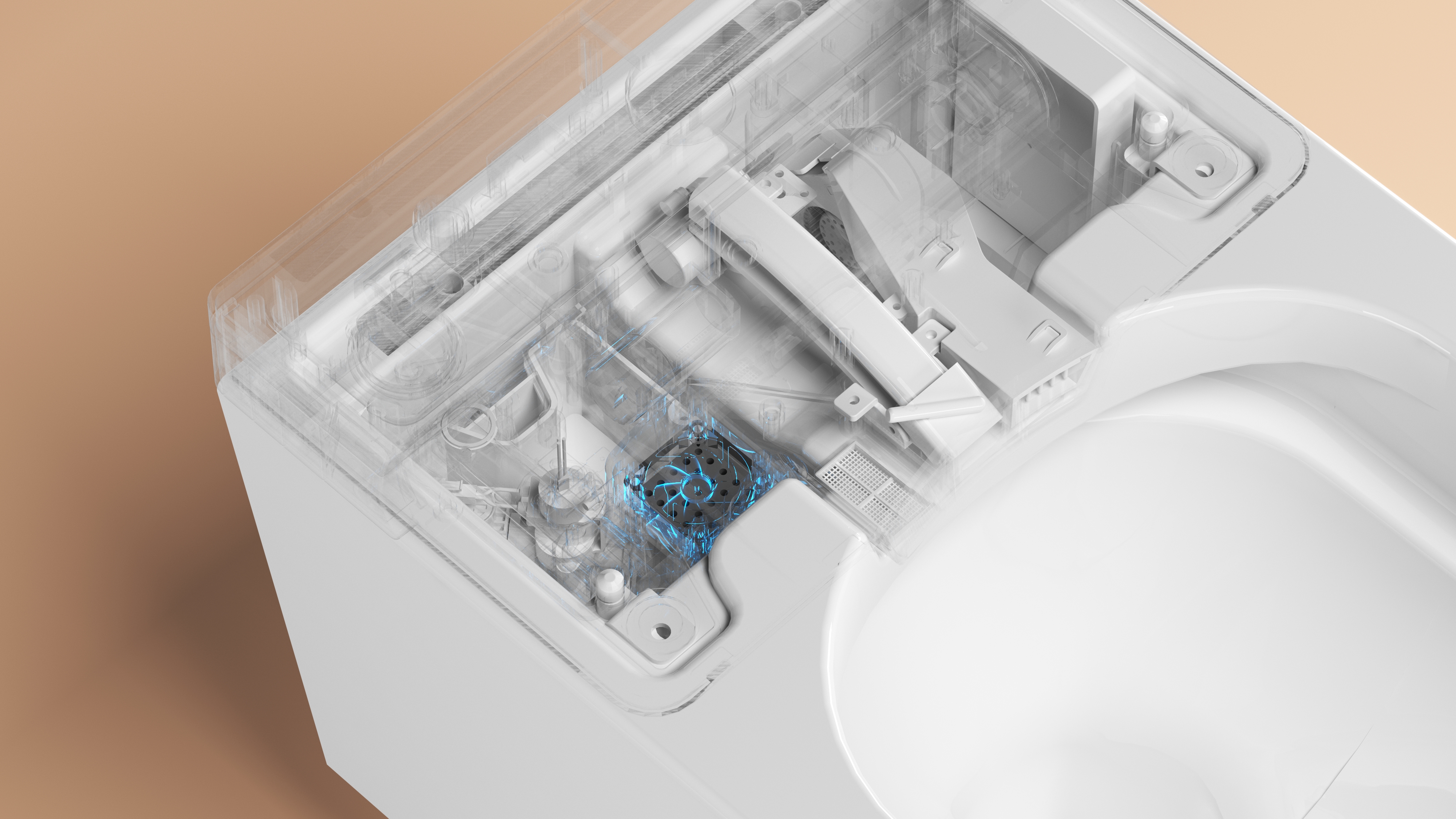

Deodorization
An active carbon filter pulls air through the seat, neutralises odours and returns clean air — no consumables, no replacement needed.

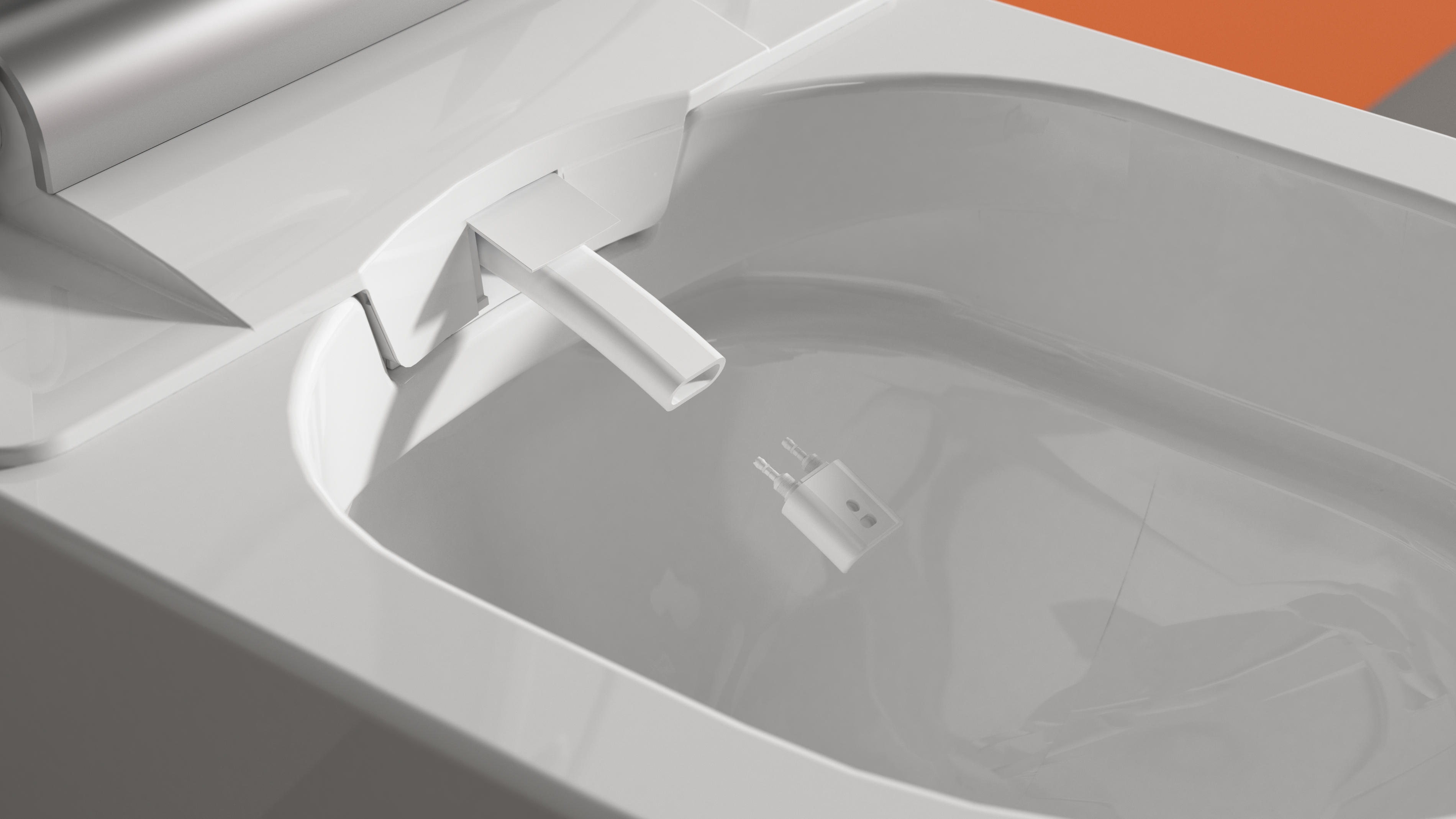

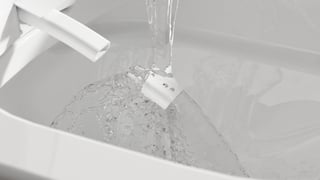

Replaceable Nozzle Tip
The spray nozzle tip snaps off for cleaning or replacement without tools. No service call required for routine maintenance.
Comfort

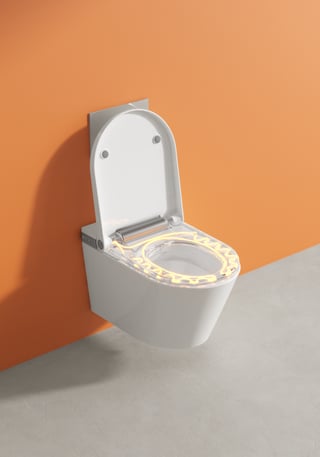

UF Heated Seat
A urea‑formaldehyde seat with an integrated heating element — harder, more hygienic and more durable than standard plastic seats. Instant warmth without long pre‑heating.

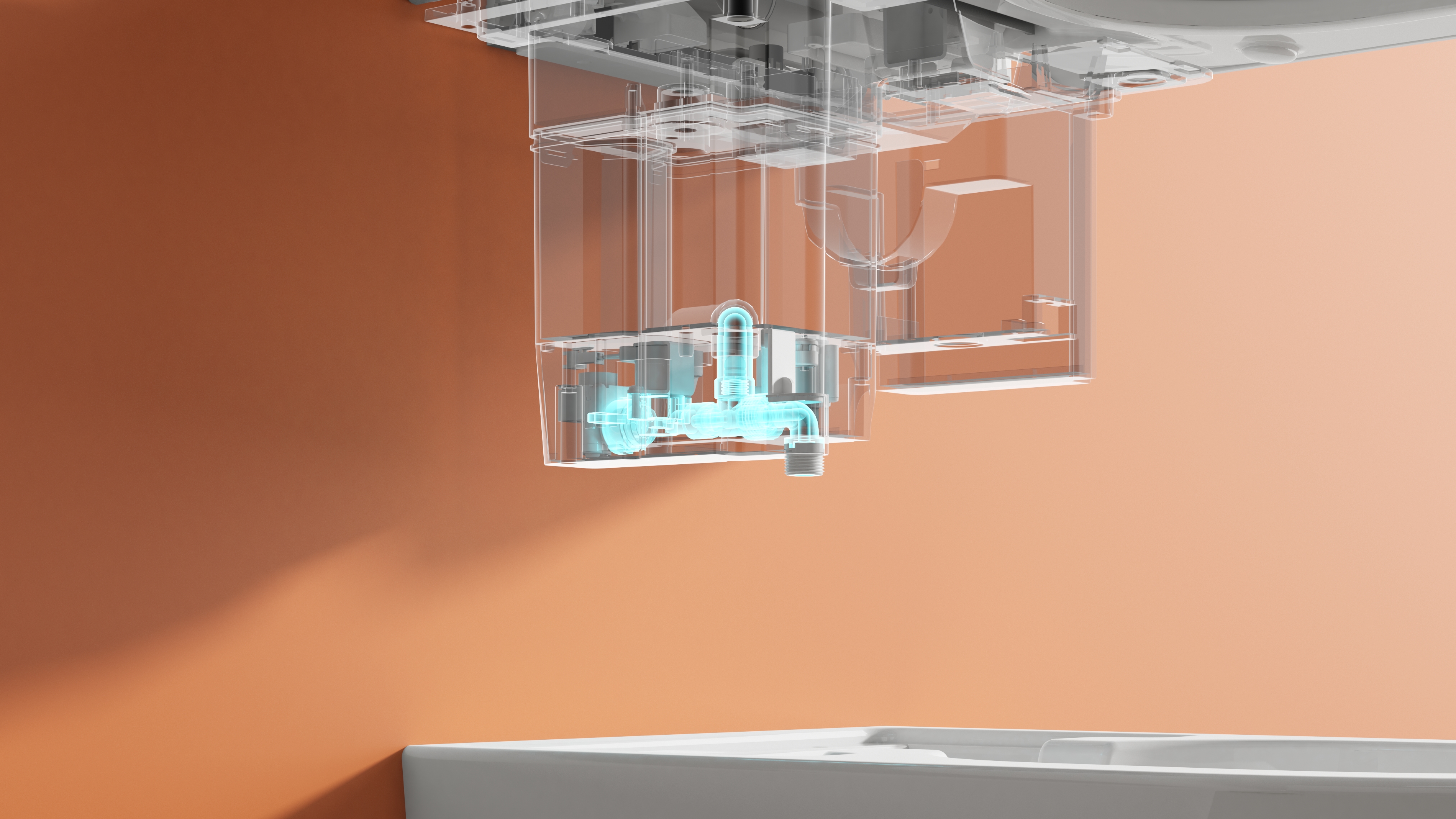

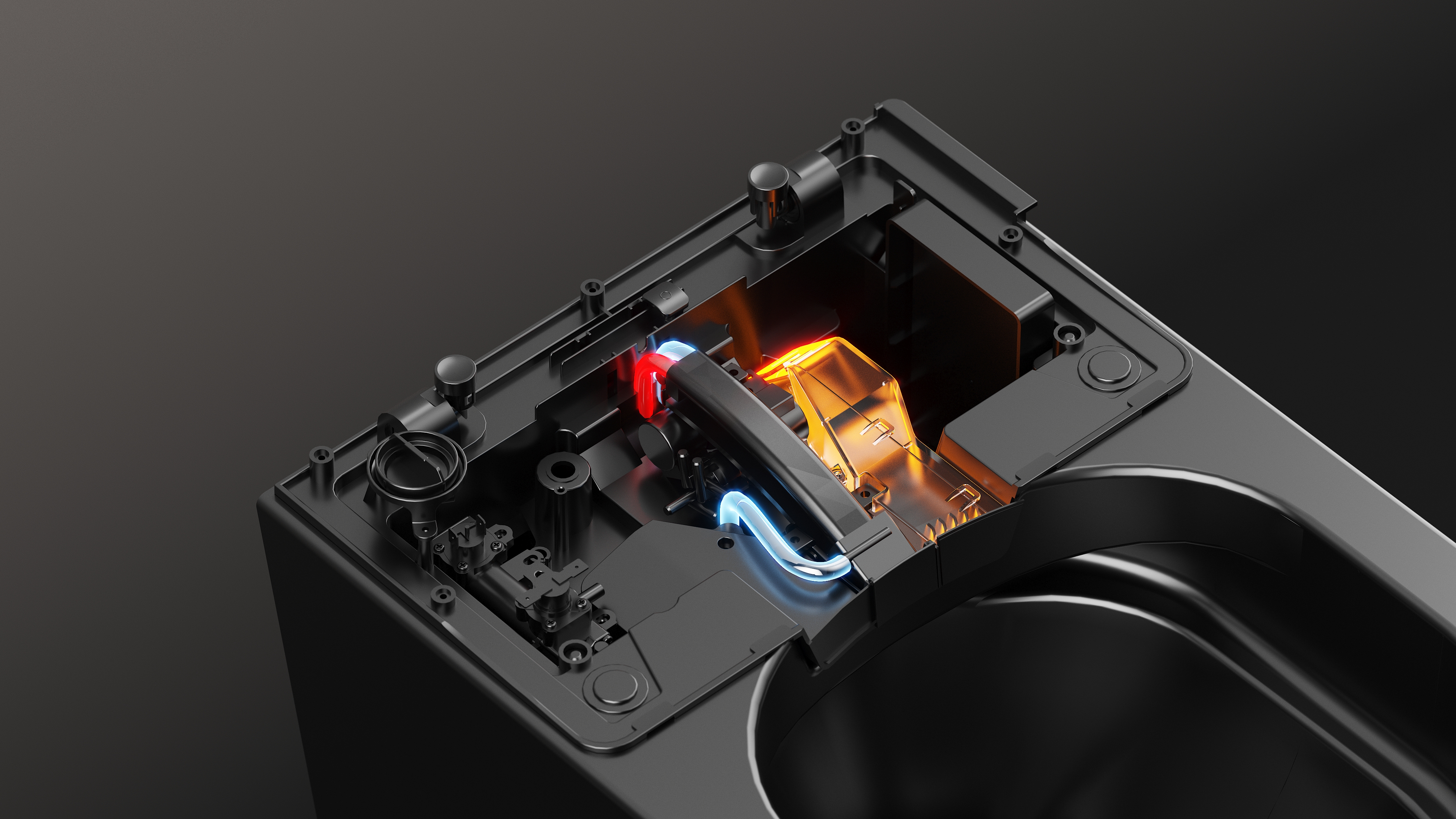

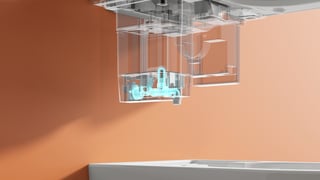

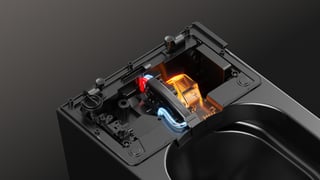

Instant Water Heating
A tankless ceramic heating system delivers unlimited warm water on demand. No storage tank means zero standby power and no bacterial growth.
Warm‑Air Dryer
Adjustable warm air dries after washing. The air outlet is positioned for effective coverage and the temperature is user‑adjustable.
Smart Features
Auto Open & Close Lid
A proximity sensor detects your approach and opens the lid automatically. After use the lid closes on its own — hands‑free, hygienic and premium.

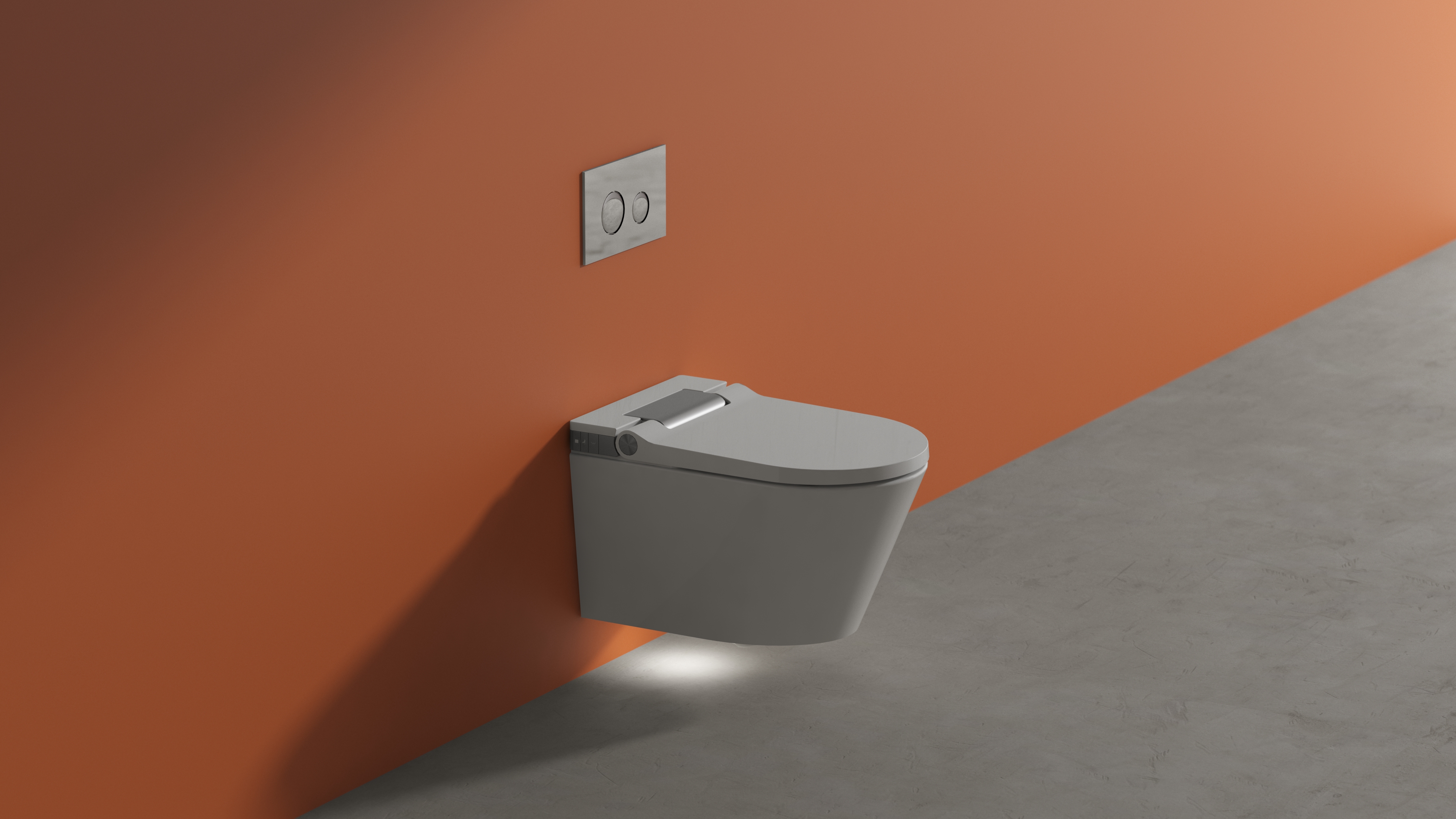

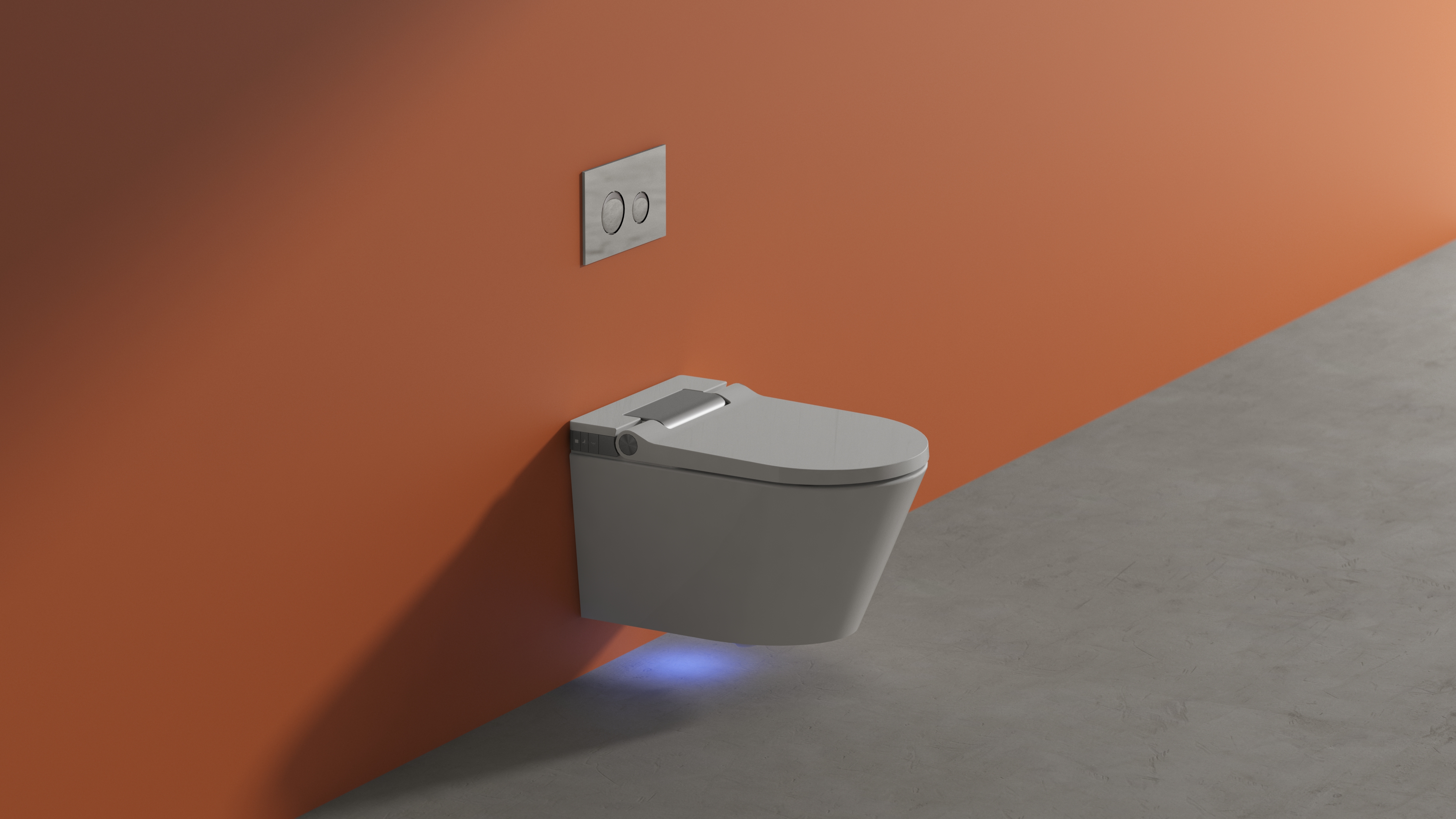

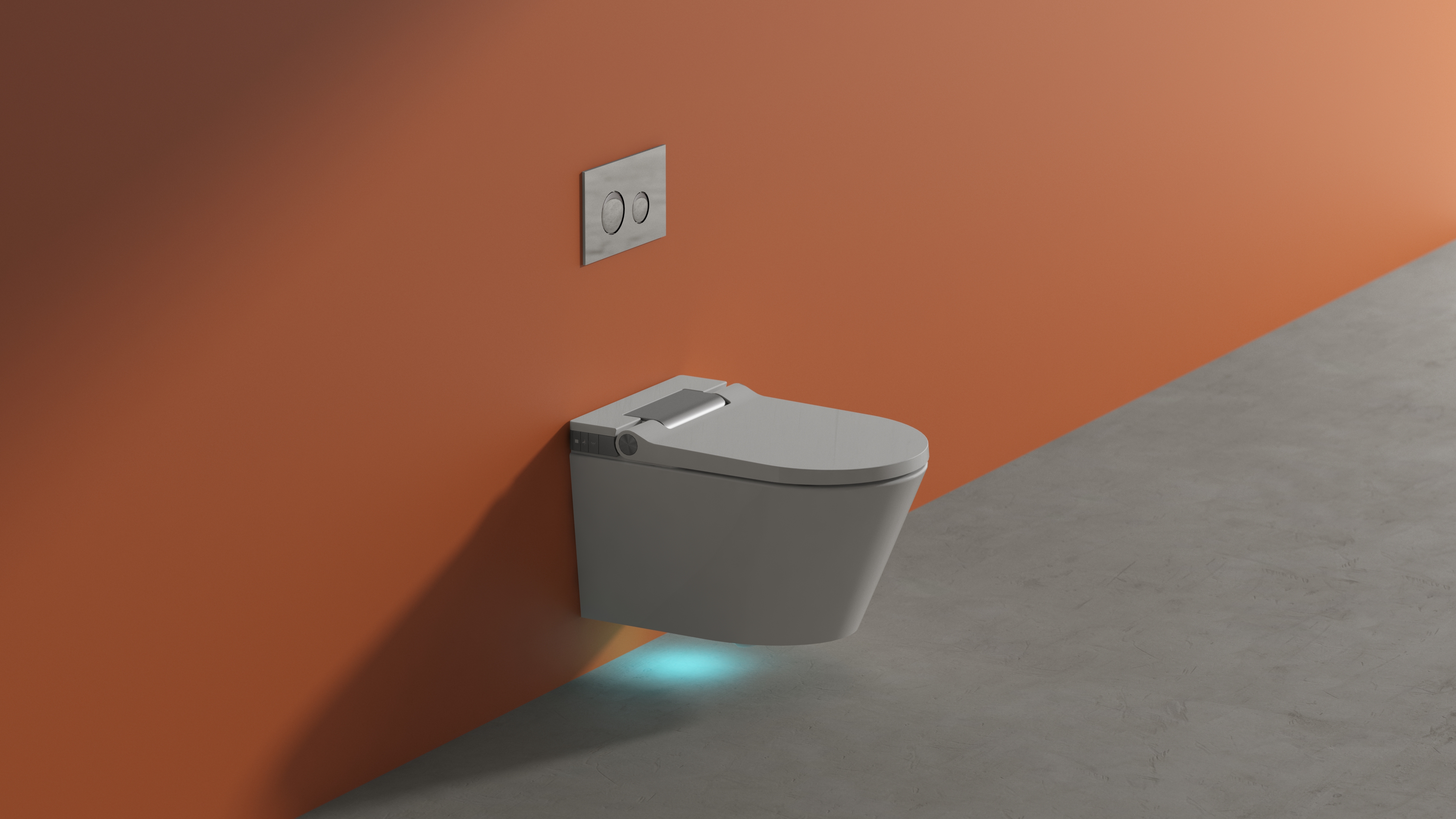

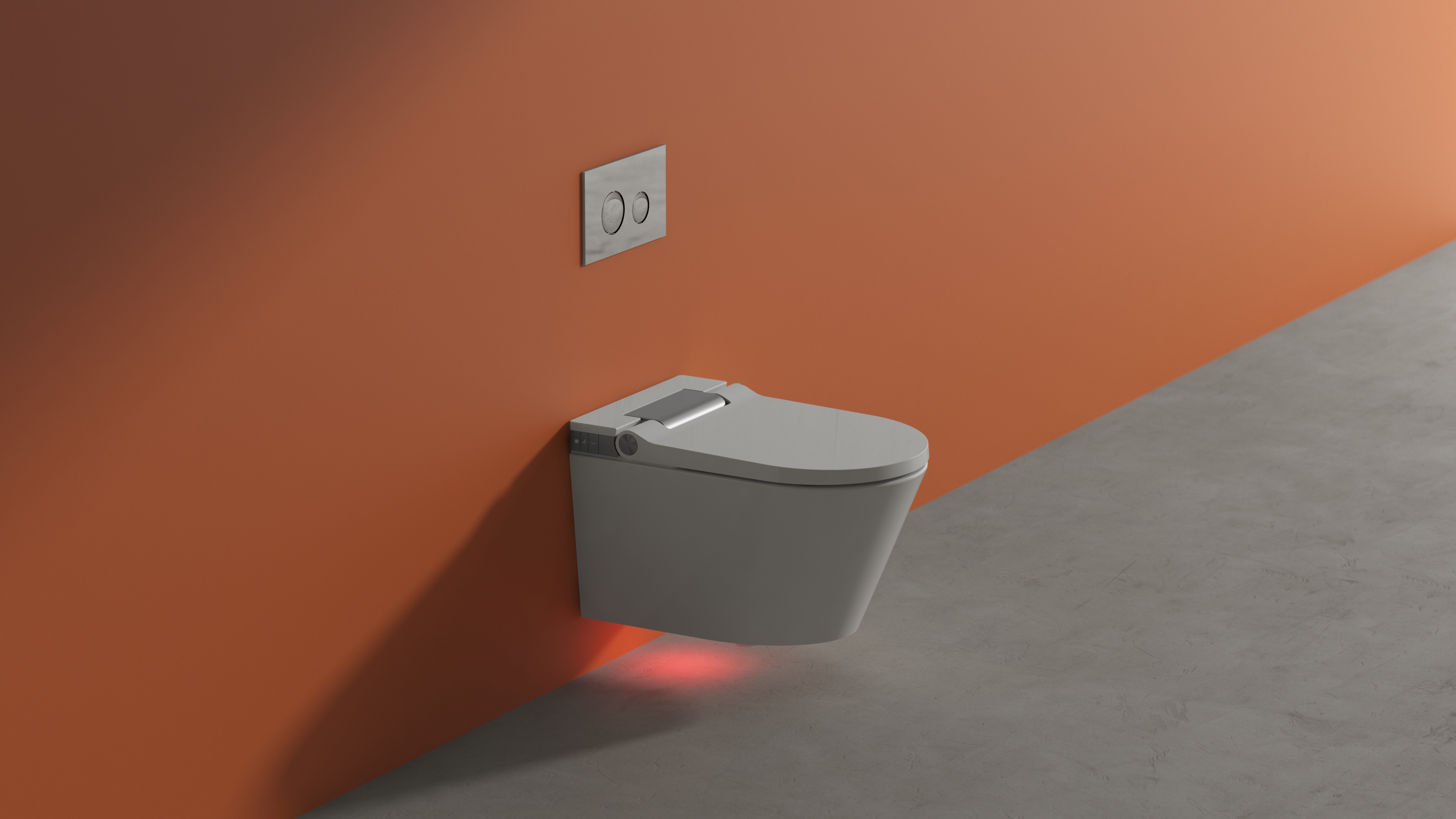

RGB Ambient Light
A motion‑activated night light with adjustable colour. Soft glow guides you at night without waking you up.

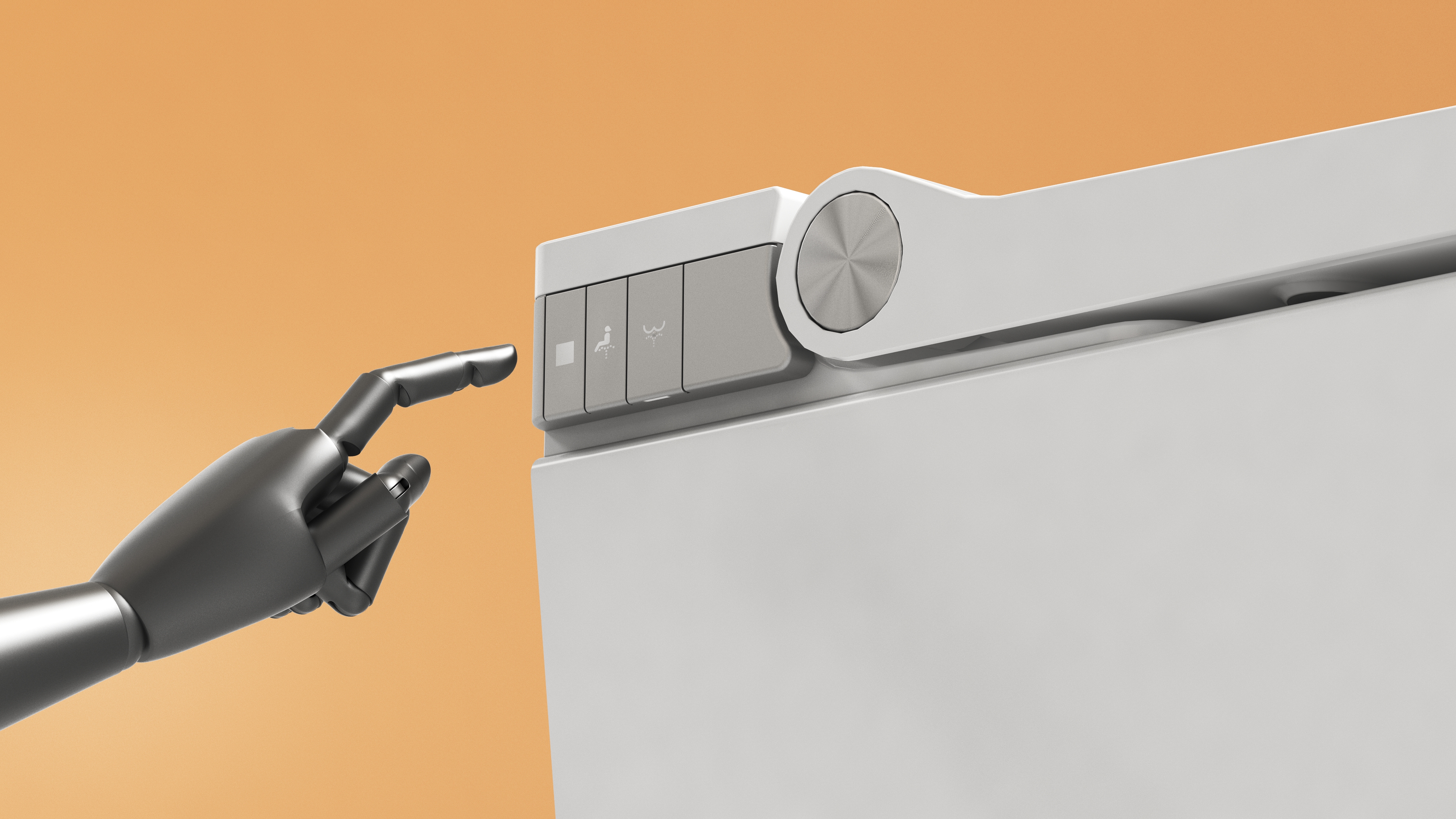

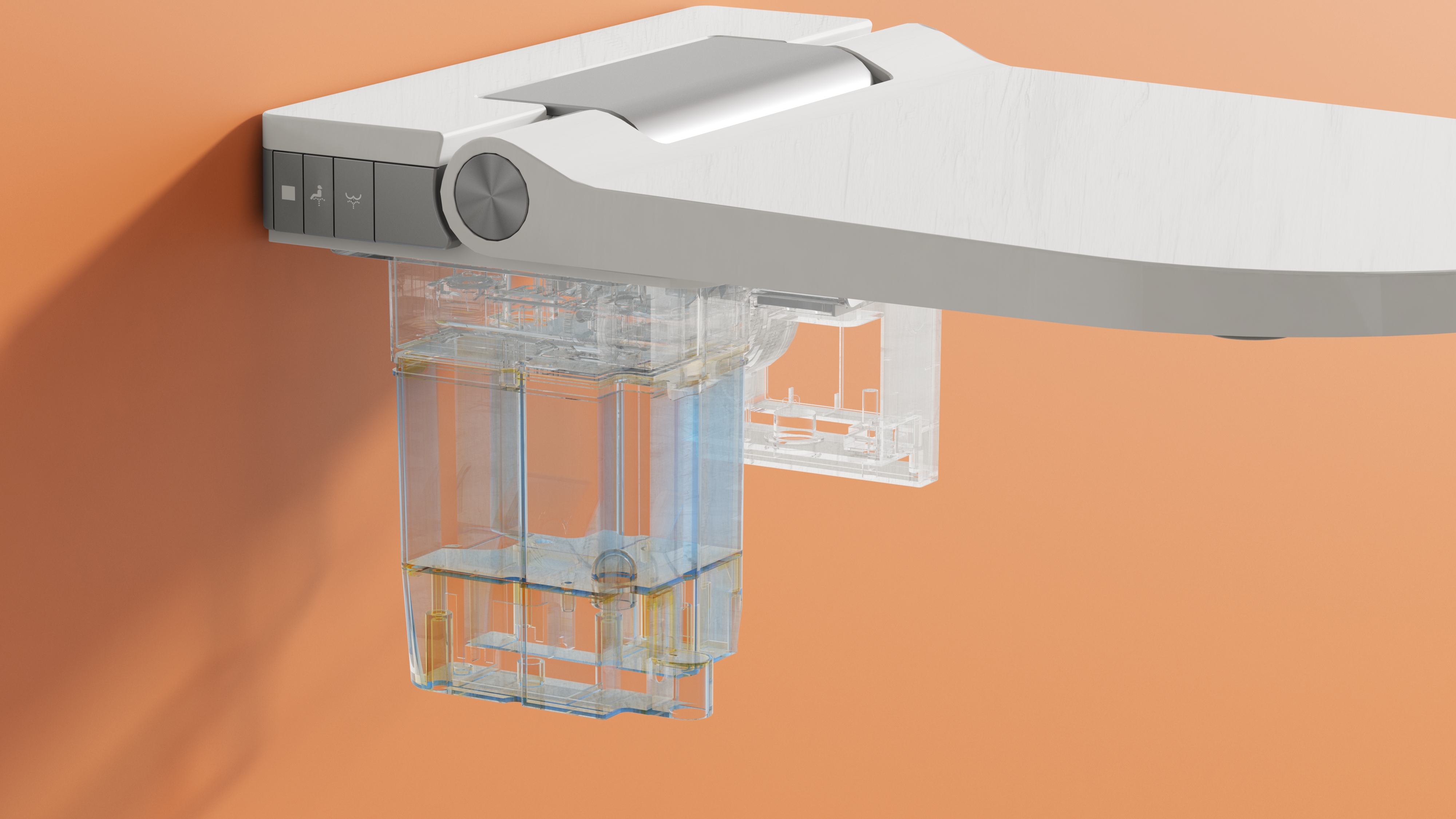

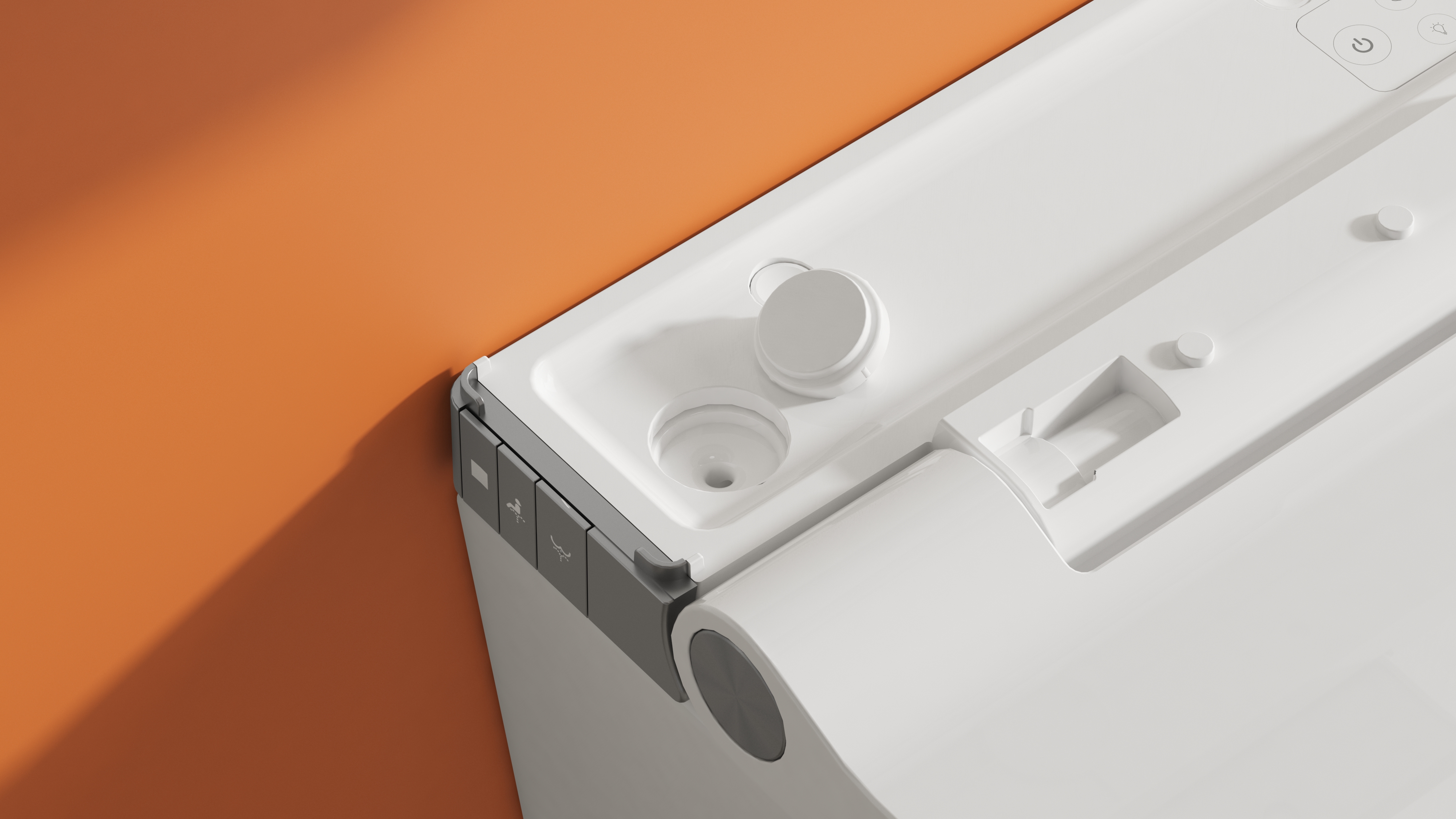

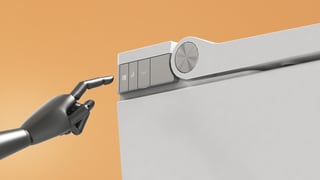

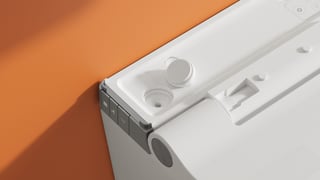

Side‑Touch Control
A capacitive touch panel on the side of the toilet — flush, wash, stop — without reaching for the remote.

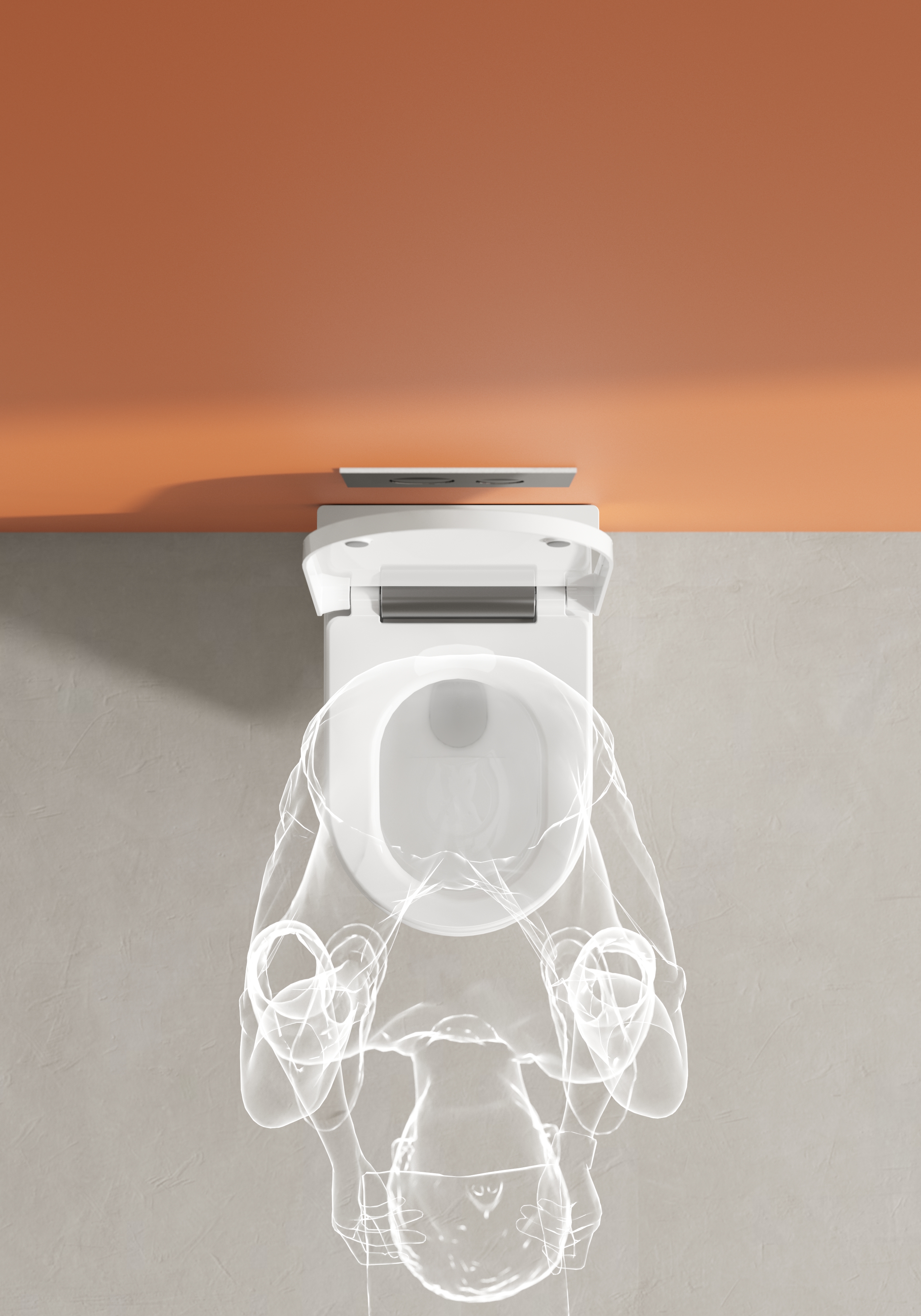

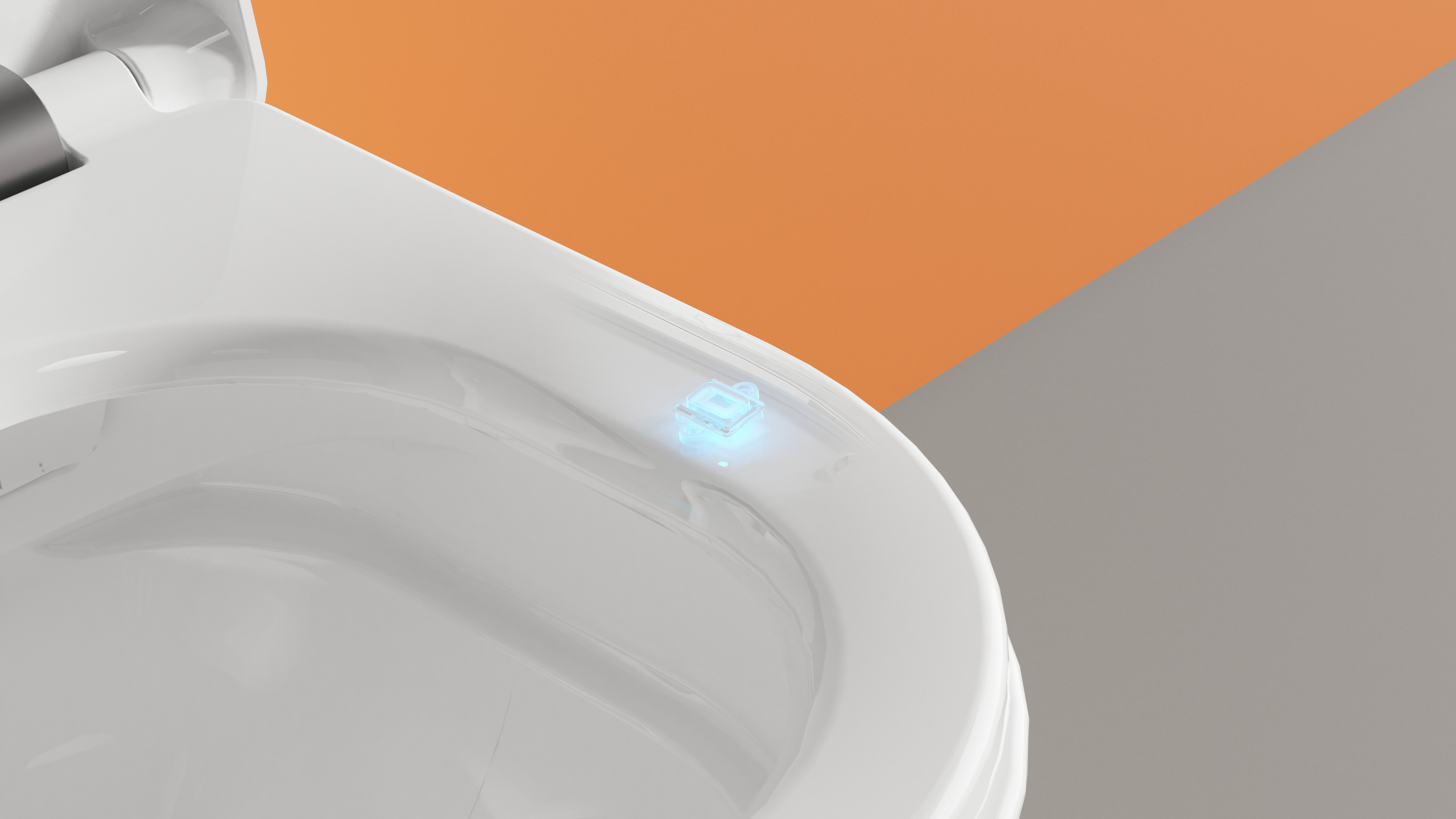

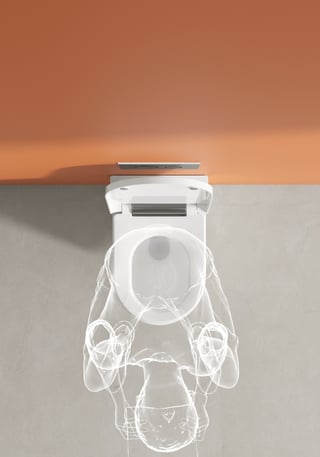

Skin Sensor
A built‑in capacitive sensor detects when you are seated. Functions only activate when someone is actually using the toilet — safe and energy‑efficient.
Engineering

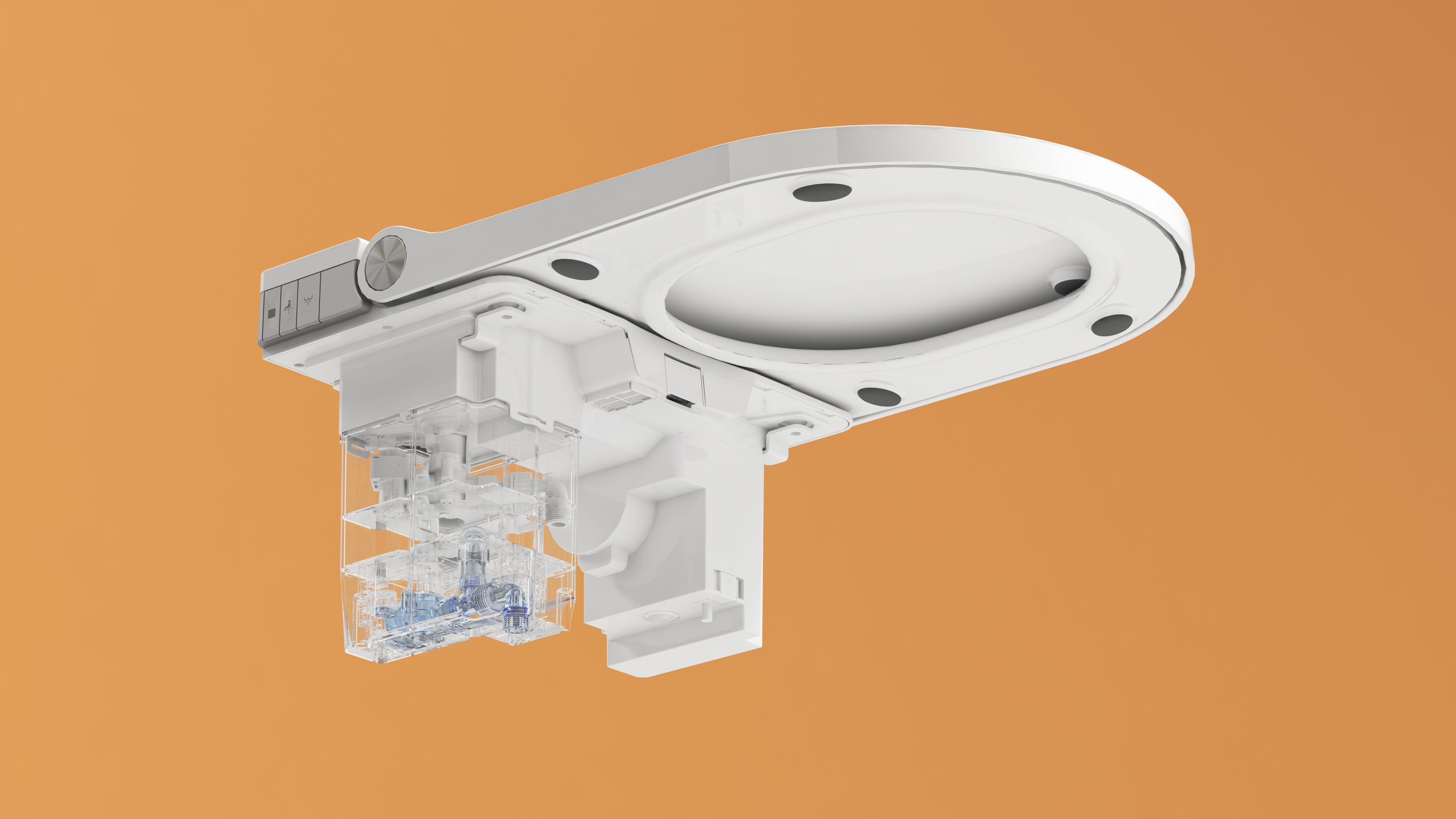

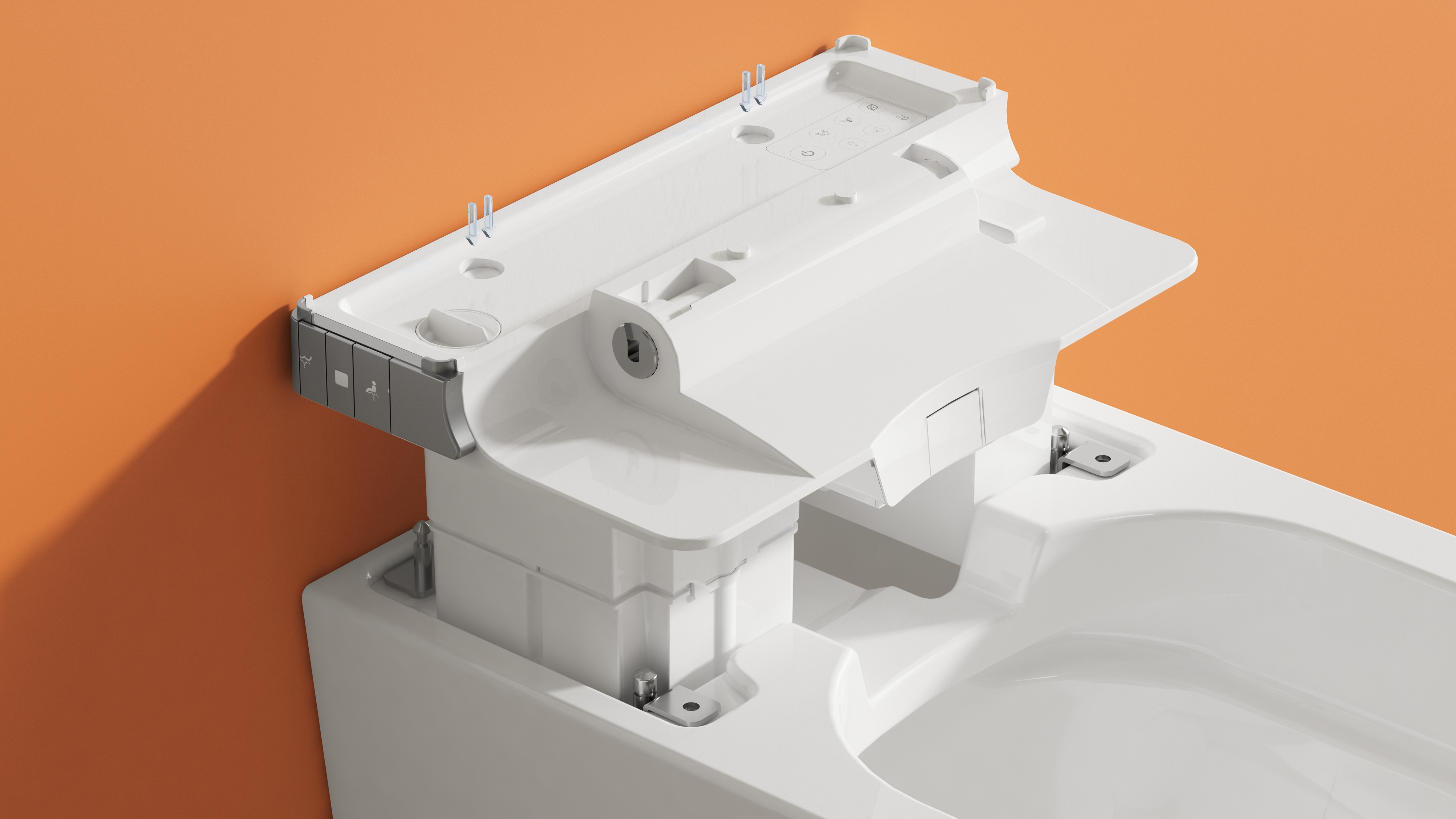

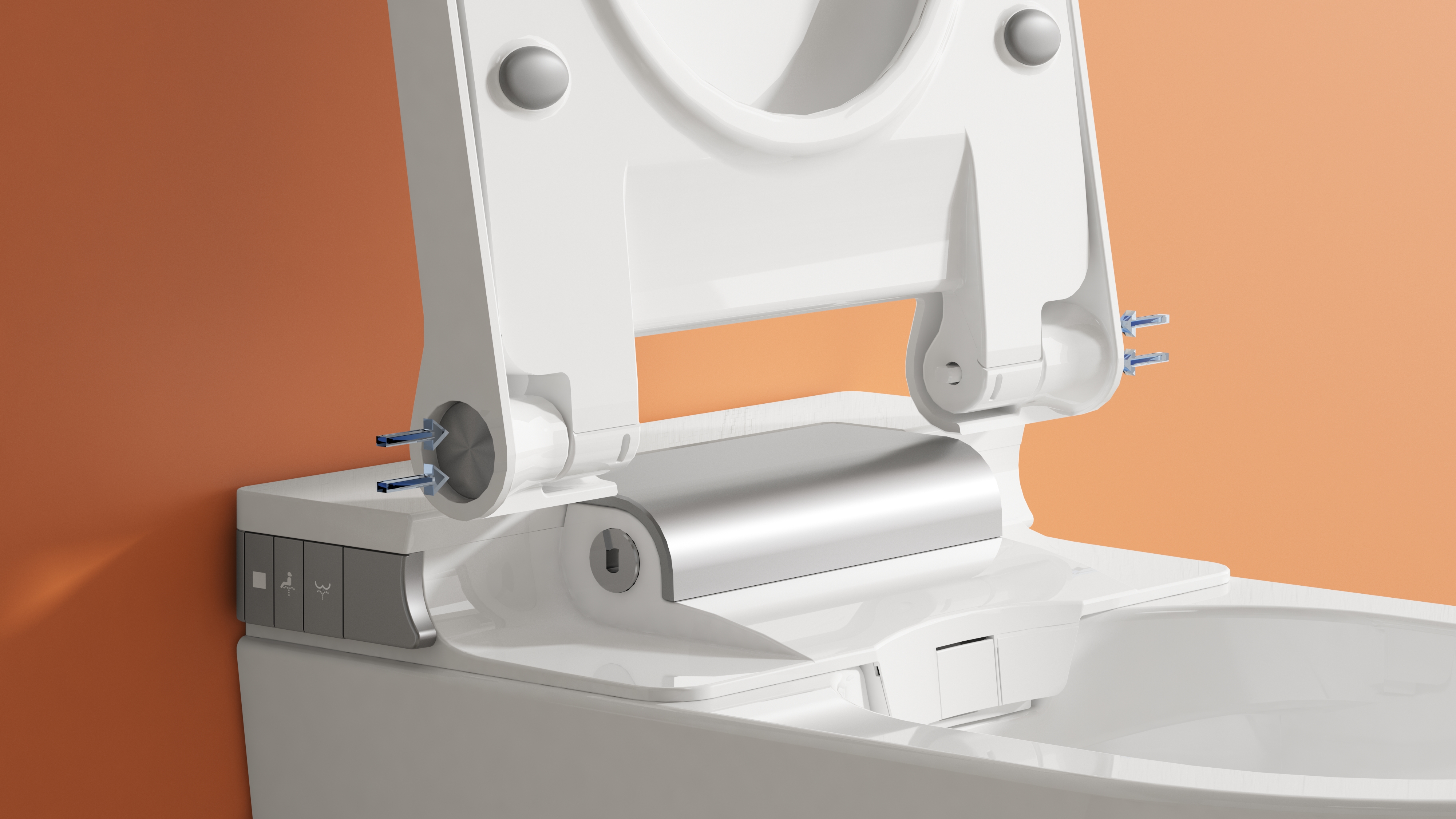

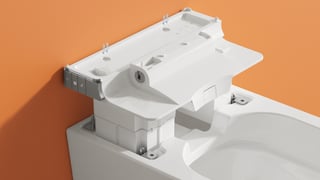

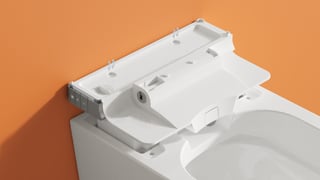

Quick‑Release Lid & Seat
Despite the heated seat and motorised lid, the entire assembly releases with one button for cleaning — a structural challenge no competitor has solved in a wall‑hung product.
Frequently Asked Questions
What is the MOQ for OEM orders?
Through our platform-sharing model, you can start with as few as 100 units for a custom enclosure design. Standard configurations are available at lower quantities for sample orders. Contact us for a specific quotation based on your requirements.
What certifications does the product carry?
The product is certified to EN 1717, EN 13077, CE, CB, RoHS, and REACH for the European market. EN 1717 backflow protection is designed into the ceramic water path from the start — not added as a bolt-on afterthought. Every platform ships with a complete technical file including test reports and declarations of conformity.
How long does OEM customisation take?
Customisation typically takes 2–4 months from design freeze to first samples, depending on the extent of changes. The shared internal architecture means electrical and water-path certification does not need to be repeated for enclosure-only changes.
Can I visit the factory before placing an order?
Yes. We welcome factory visits in Ningbo, China. You can inspect the production line, testing laboratory, and meet the engineering team. Schedule a visit — we usually confirm within one business day.
What water pressure and water supply does this wall-hung model need?
City mains pressure of approximately 3 bar is recommended; below about 2 bar the wash nozzles may not deploy fully. The unit connects to the cold-water supply only — a tankless ceramic heater delivers warm water instantly, so no hot-water line is needed. Gravity or tank-fed supply is not supported.

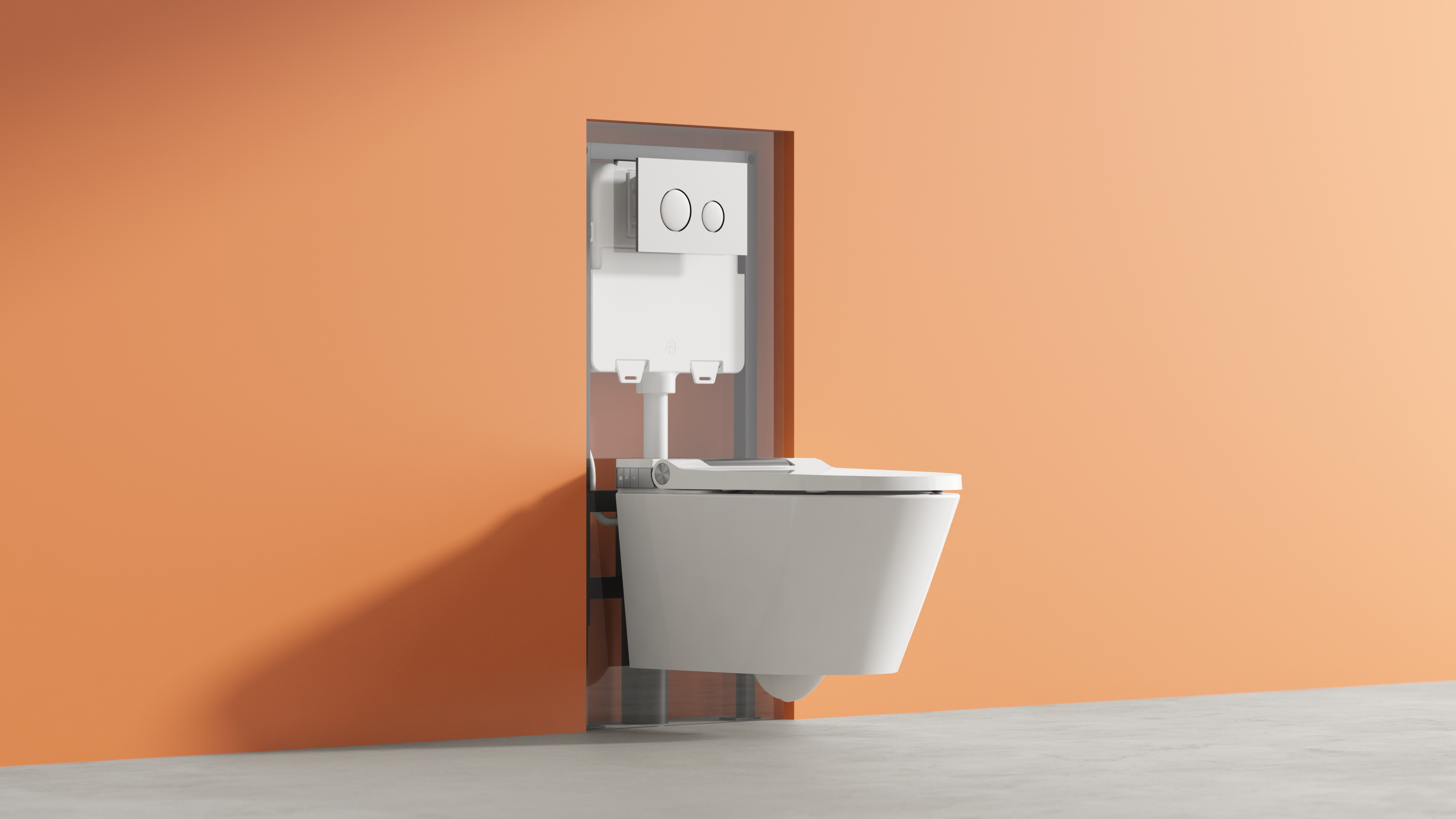

Which support frames is it compatible with?
Our wall-hung models mount on any in-wall frame with 180 mm fixing centres — Geberit Duofix, TECE and equivalent systems. The frame is supplied by the installer or your brand partner; a building-preparation drawing is included in the technical file.
Technical specifications
| Type | Wall‑hung shower toilet (2nd generation) |
|---|---|
| Size (W×D×H) | 400 × 570 × 340 mm |
| Material | Ceramic bowl + UF seat & lid |
| Rough‑in | P‑trap / S‑trap (wall or floor outlet) |
| Flush type | Rimless vertex flush |
| Voltage | 220–240 V ~ 50 Hz |
| Max. power | 1650 W |
| Water pressure | 0.15–0.75 MPa |
| Heated seat | UF, 4‑level adjustable |
| Water heating | Tankless instant ceramic heater |
| Wash modes | Rear, front, oscillating, pulsating |
| Dryer | Warm air, 4‑level adjustable |
| Deodorization | Active carbon, maintenance‑free |

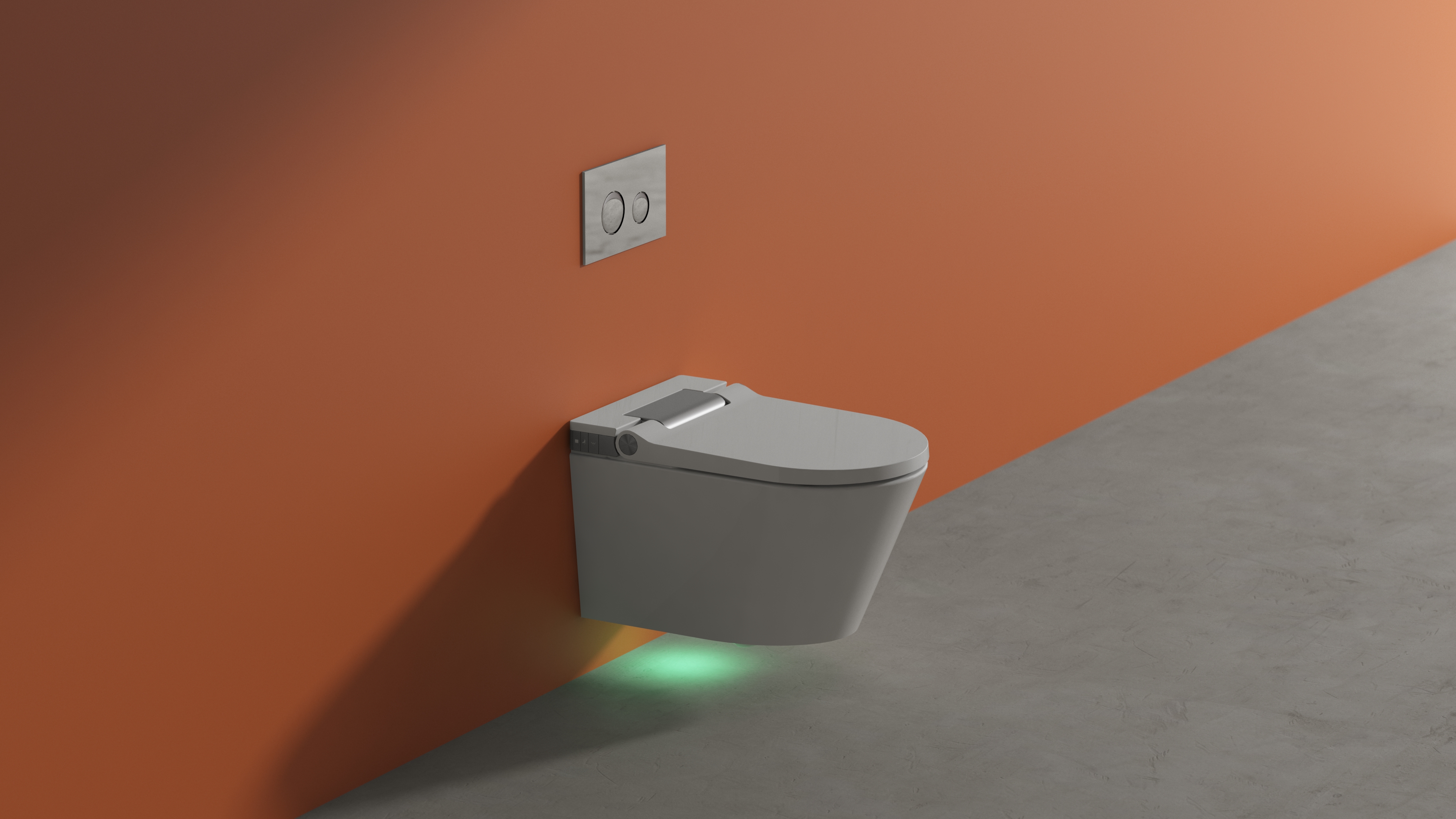

| Ambient light | RGB, motion‑activated |
| Noise level | ≤ 55 dB |
| Weight (net) | ~38 kg |
| Compliance | EN 1717 · EN 13077 · EN 13079 · CE · CB · RoHS · REACH |
Also known as: Shower toilet, shower WC, Dusch‑WC, Dusch WC, toilettes intelligentes, WC lavant, douchetoilet, douche WC, inodoro inteligente, WC con bidé, water sanitario, WC intelligente — OtterMax is a specialised OEM / ODM manufacturer of smart toilets and shower WCs for the European and North American markets.
